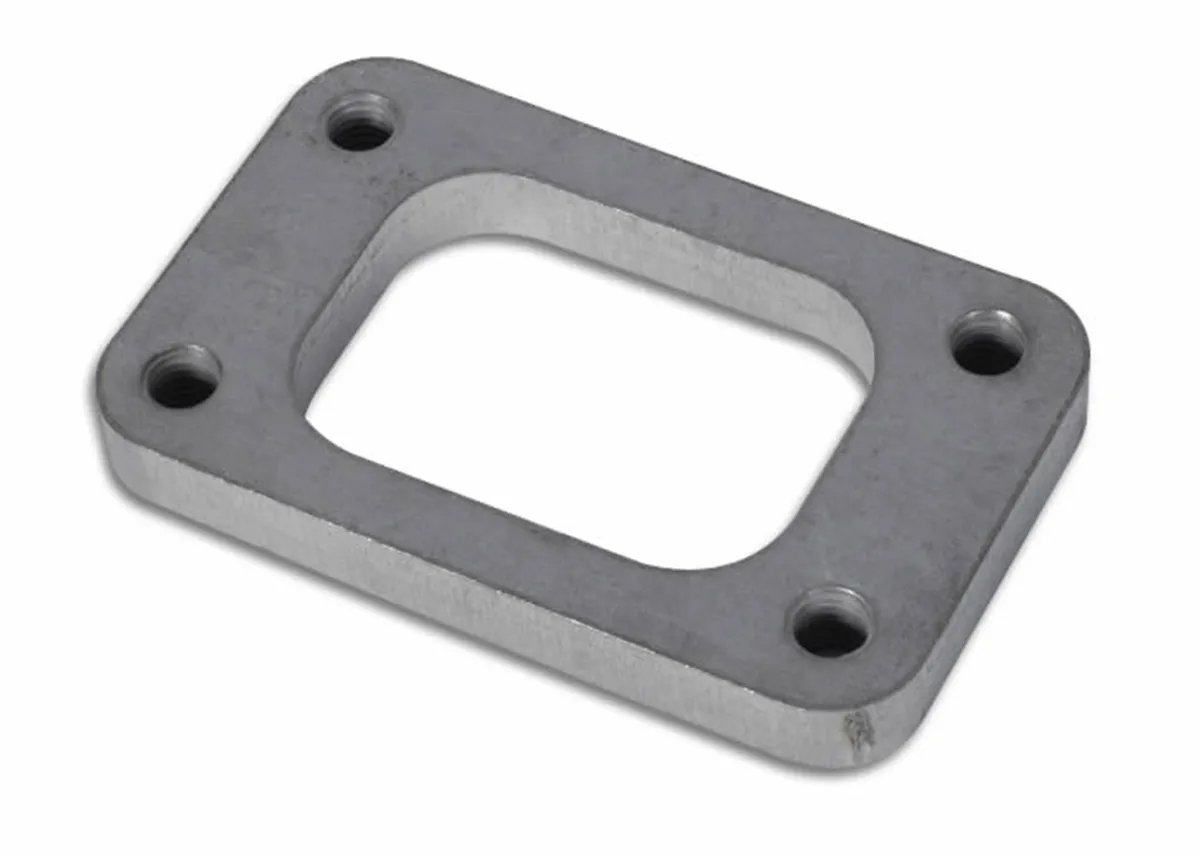

Name: Turbo Inlet Flange; 44.5mm Bhcch; 85.73mm Bhccw; M10x1.5 Bhts; 66.8mm Overall h; 108mm Overall w; 0.5 In. Thickness; 46.5mm Port h; For T3; Mild Steel
Brand: Vibrant Performance
SKU: 14310
Price: 29.5 USD
Availability: InStock

Turbo Inlet Flange; 44.5mm Bhcch; 85.73mm Bhccw; M10x1.5 Bhts; 66.8mm Overall h; 108mm Overall w; 0.5 In. Thickness; 46.5mm Port h; For T3; Mild Steel; W/Tapped Holes;

MPN: 14310UPC: 00690092121600

In Stock — Ready to Ship

$29.50$41.08SAVE 28%

6 Months

Mild Steel Turbo Inlet Flange for Generic T3/T4 and Turbonetics T3 Turbines

Secure Checkout

SSL Encrypted

Easy Returns

30-day policy

Guaranteed Fitment

Or your money back

Pay Over Time

With Affirm

Usually ships in 1-3 business days

Description: Turbocharger INLET Flange, Mild Steel, 4-Bolt for Turbonetics T3 Turbine

Overview

Mild Steel Turbo Inlet Flange for Generic T3/T4 and Turbonetics T3 Turbines

Weight	0.825 lbs
Length	6.95 in
Width	4 in
Height	0.75 in
Part Number	14310
UPC	00690092121600
Billable Weight	0.82
Bolt Hole Center to Center Height	44.5 MM
Bolt Hole Center to Center Width	85.73 MM
Bolt Hole Thread Size	M10 x 1.5
Case Quantity	1
Color	RGB
Country of Origin	TW
Dimensional Weight	0.82 PG
Emissions	Emissions Compliance Exempt
Hazardous Material	N
Height	0.51
Item Quantity/Size	1 EA
Length	6.95
Material	Mild Steel
Overall Height	66.75 MM
Overall Port Width	65 MM
Overall Width	108 MM
Port Height	46.5 MM
Port Width	63.5 MM
Prop 65 Warning	N

Turbo Inlet Flange; 44.5mm Bhcch; 85.73mm Bhccw; M10x1.5 Bhts; 66.8mm Overall h; 108mm Overall w; 0.5 In. Thickness; 46.5mm Port h; For T3; Mild Steel; W/Tapped Holes;
