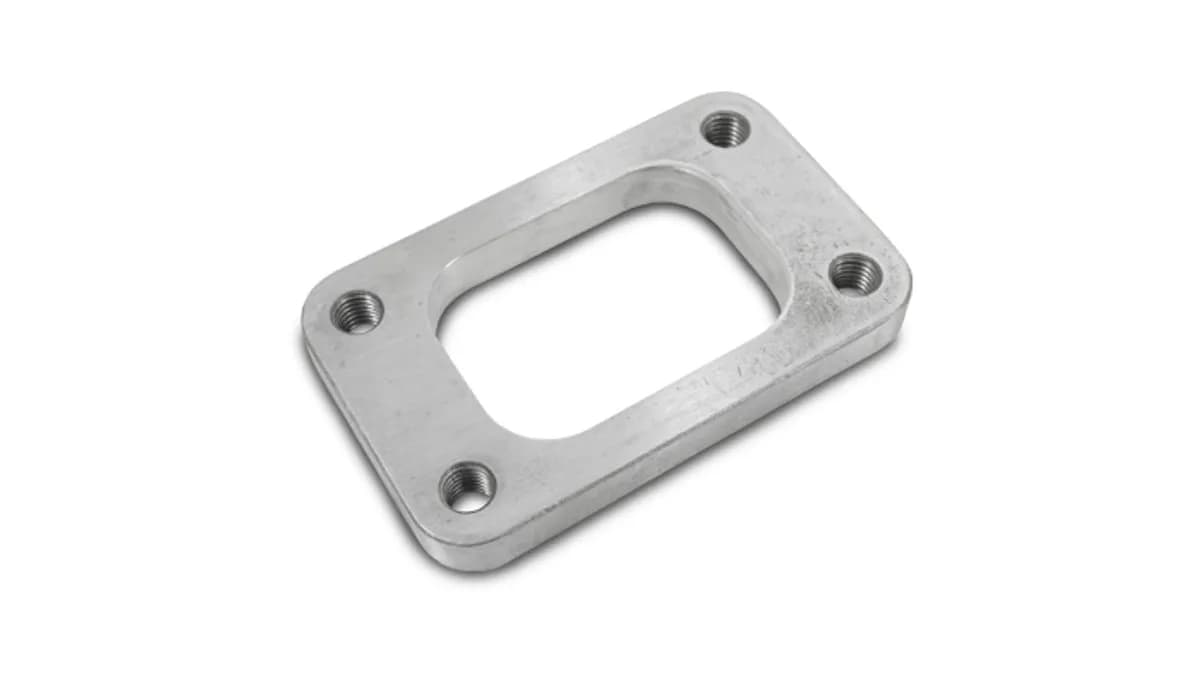

Name: Turbo Inlet Flange; 44.5mm Bhcch; 86mm Bhccw; M10x1.5 Bhts; 66.8mm Overall h; 108mm Overall w; 0.5 In. Thickness; 46.5mm Port h; 63.5mm Port w; For T3
Brand: Vibrant Performance
SKU: 1431
Price: 49.99 USD
Availability: InStock

Turbo Inlet Flange; 44.5mm Bhcch; 86mm Bhccw; M10x1.5 Bhts; 66.8mm Overall h; 108mm Overall w; 0.5 In. Thickness; 46.5mm Port h; 63.5mm Port w; For T3/Gt30r; 304 Stainless Steel;

MPN: 1431UPC: 00690092118303

In Stock

Almost gone! Only 2 remaining

$49.99$68.63SAVE 27%

1 Years

Turbo Inlet Flange - 0.5 in Thick - Stainless - T3 - Each

Secure Checkout

SSL Encrypted

Easy Returns

30-day policy

Guaranteed Fitment

Or your money back

Pay Over Time

With Affirm

Usually ships in 1-3 business days

1 Year Limited Warranty,Stainless Steel,Bolt Pattern 3.375 in. x 1.75 in.,Prevents Warping Due To High Heat,Tapped Holes

Overview

Turbo Inlet Flange - 0.5 in Thick
- Stainless
- T3
- Each

Weight	0.88 lbs
Length	7.01 in
Width	6 in
Height	0.51 in
Part Number	1431
UPC	00690092118303
Billable Weight	0.88
Bolt Hole Center to Center Height	44.5 MM
Bolt Hole Center to Center Width	86 MM
Bolt Hole Thread Size	M10 x 1.5
Case Quantity	1
Color	RGB
Country of Origin	TW
Dimensional Weight	0.88 PG
Emissions	Emissions Compliance Exempt
Hazardous Material	N
Height	0.51
Item Quantity/Size	1 EA
Length	7.01
Material	304 Stainless Steel
Overall Height	66.75 MM
Overall Port Width	65 MM
Overall Width	108 MM
Port Height	46.5 MM
Port Width	63.5 MM
Prop 65 Warning	N

Turbo Inlet Flange; 44.5mm Bhcch; 86mm Bhccw; M10x1.5 Bhts; 66.8mm Overall h; 108mm Overall w; 0.5 In. Thickness; 46.5mm Port h; 63.5mm Port w; For T3/Gt30r; 304 Stainless Steel;
