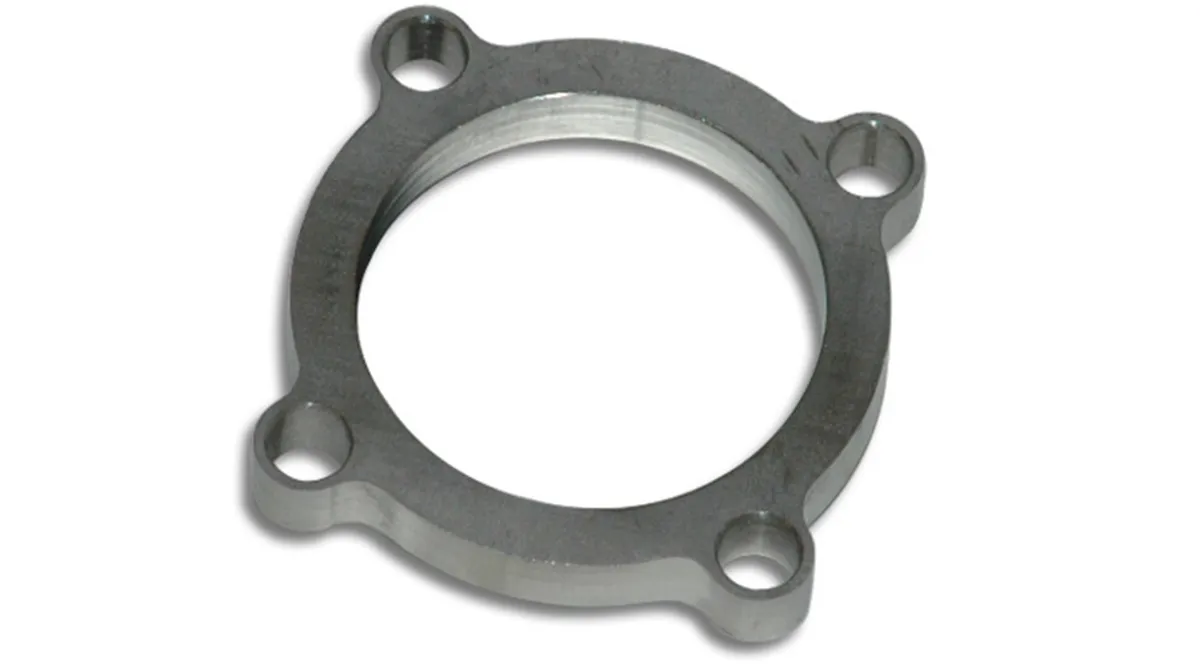

Name: Discharge Flange; 89.7MM Bolt Circle; 10.32MM BHID; 0.5 in. Thickness; 2.5 in. ID; 63.5MM Port ID; For GT30/GT35; Mild Steel; 4 Bolt;
Brand: Vibrant Performance
SKU: 14390
Price: 39.99 USD
Availability: InStock

Discharge Flange; 89.7MM Bolt Circle; 10.32MM BHID; 0.5 in. Thickness; 2.5 in. ID; 63.5MM Port ID; For GT30/GT35; Mild Steel; 4 Bolt;

MPN: 14390UPC: 00690092163914

In Stock

Almost gone! Only 2 remaining

$39.99$41.59SAVE 4%

6 Months

Mild Steel Turbo Outlet Flange for T3 4 Bolt Outlet without Internal Wastegate (suits 2.5" O.D. tubing)

Secure Checkout

SSL Encrypted

Easy Returns

30-day policy

Guaranteed Fitment

Or your money back

Pay Over Time

With Affirm

Usually ships in 1-3 business days

6 Month Limited Warranty,1018 Mild Steel,Designed For GT30/35 Turbo Housing,Prevents Warping Due To High Heat

Overview

Mild Steel Turbo Outlet Flange for T3 4 Bolt Outlet without Internal Wastegate (suits 2.5" O.D. tubing)

Weight	0.25 lbs
Length	7.01 in
Width	4 in
Height	0.51 in
Part Number	14390
UPC	00690092163914
Additional Handling Charge	Yes
Billable Weight	0.57
Bolt Circle	89.69 MM
Bolt Hole I.D.	10.32 MM
Case Quantity	1
Color	RGB
Country of Origin	TW
Dimensional Weight	0.57 PG
Emissions	Emissions Compliance Exempt
Hazardous Material	N
Height	0.51
Item Quantity/Size	1 EA
Length	7.01
Material	304 Stainless Steel
Port I.D.	63.5 MM
Prop 65 Warning	N
Qty Per Application	Normal Quantity Used in a Vehicle:1 Box
Sale Segment	Turbo Flanges and Fittings
Sold As	EA
Thickness	0.5 IN

Discharge Flange; 89.7MM Bolt Circle; 10.32MM BHID; 0.5 in. Thickness; 2.5 in. ID; 63.5MM Port ID; For GT30/GT35; Mild Steel; 4 Bolt;
