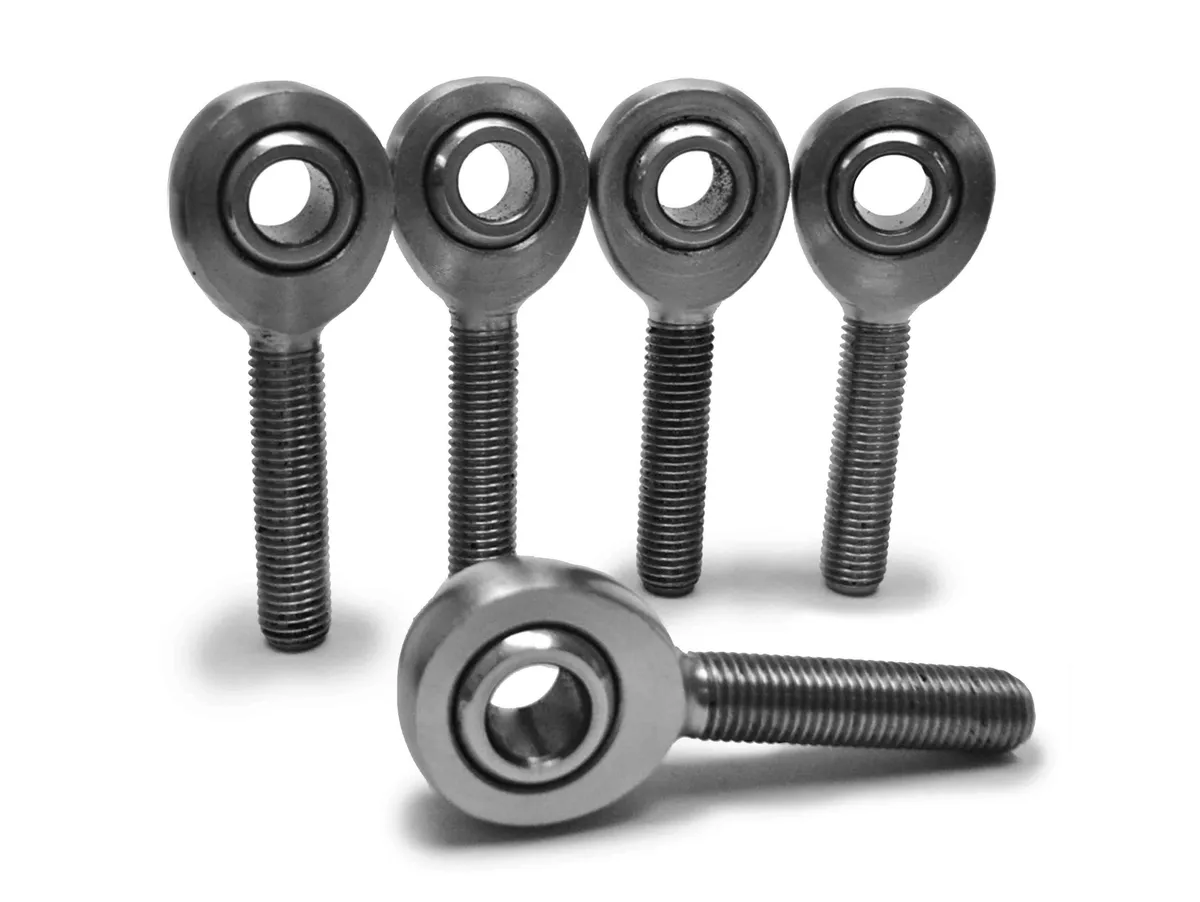

Universal Rod Ends Metric Male Stainless 304 Housing, PTFE Race M12 x 1.75 RH 5 Pack Quantity Per Package: This package includes five Spherical Rod Ends Product Name: Male Spherical Rod End Thread: Male M12 x 1.75 RH x 32mm Ball ID: 12mm Housing Material: Stainless Steel Finish: Stainless Steel Ball Finish: Hard Chrome Plated Bearing Race: PTFE Housing Width: 32.5mm Base of Rod End to Center of Ball: 54mm Ball Thickness: 16mm Ultimate Static Load Rating: 2869 lbs Common Other Names for this Product: heim joint, rose joint, Gelenkköpfe, Rotula Esféfico, Embouts, Teste a snodo Application: Our larger chrome moly Spherical Rod Ends are used as sway bar end links, panhard bars, control arms, three link and four link suspensions and strut tower braces. This size rod end is often used in hand or foot actuated push-pull linkages.

Common Accessories:
These Spherical Rod Ends are typically used with our WTF-M thread bungs, MHTconnecting tubes, female Spherical Rod Ends, jam nuts, and bolts.

Alternative Designs:
For lighter duty linkage applications, consider our ASMM (steel raced) series, our DXTM (nylon) series, DWTM (steel) series, or DPM (bronze zerked) series.

Inch Alternative:
The inch equivalent to this series is our MTM series.

Warning:
Regardless of a specific product's name or marketing description, rod ends used in the wrong application will fail. We encourage our customers to know the load rating requirements of their application.
