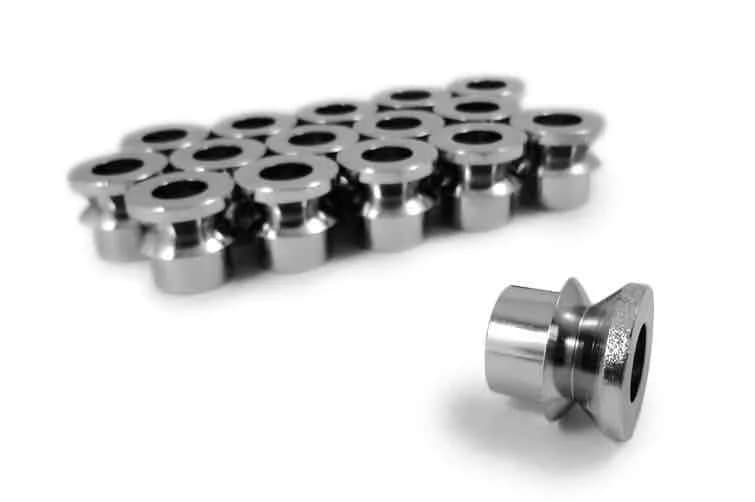

"Universal Rod End Misalignment Inserts For 1 Inch Rod Ends V Style Yields 3/4 Bore Chrome Moly 16 Pack Quantity per package: This package includes 16 bushings (enough for 8 rod end)s. This item does not include the spherical rod end.

Fits Rod End Bore Size of:
1.00"" Bore Size of Insert: 3/4"" Material: 4130 Chrome Moly Finish: Decorative Polished Chrome Plated Length of Bushing After Installation: Each bushing adds 0.695"" of width to the rod end, or 1.390"" overall (because two bushings are required per rod end).

Diameter of Flare:
1.115"" Common Other Names for this Product: heim joint bushings, tapered rod end spacers, rod end inserts.

Application:
High Misalignment Bushings are used to increase the misalignment angle of a spherical rod end bearing. Two High Misalignment Bushings are required for each spherical rod end bearing. The high misalignment inserts are a simple slip fit. These bushings provide for more clearance so the bolt head does not minimize the natural cone angle of the spherical rod end bearing.

Typical Mating Parts:
These bushings are commonly used in conjunction with our SJ-MXM-16 chrome moly spherical rod end bearing, and our STM-16 stainless steel teflon race spherical rod end bearing. They can also be used with some spherical plain bearings, and most 3/4"" bore i.d. spherical rod ends - male or female.

Custom Fabricating:
Steinjager offers a full range of tube fabricating capabilities including sawing, cnc bending, robotic mig welding, tig welding, threading, drilling, tapping, reaming, deburring, forging, upset forging, press forming, press flattening, assembly, rotary swaging, power bending, and powder painting. Laser cutting, plasma cutting, cnc turned parts, multispindle parts, and progressive stampings are also available as part of tubular weldments and assemblies. Steinjager also offers complete wireforming capabilities including all of the above process, plus zinc plating, heat treating and cold heading. Let us custom build and/or private label your application for you!"
