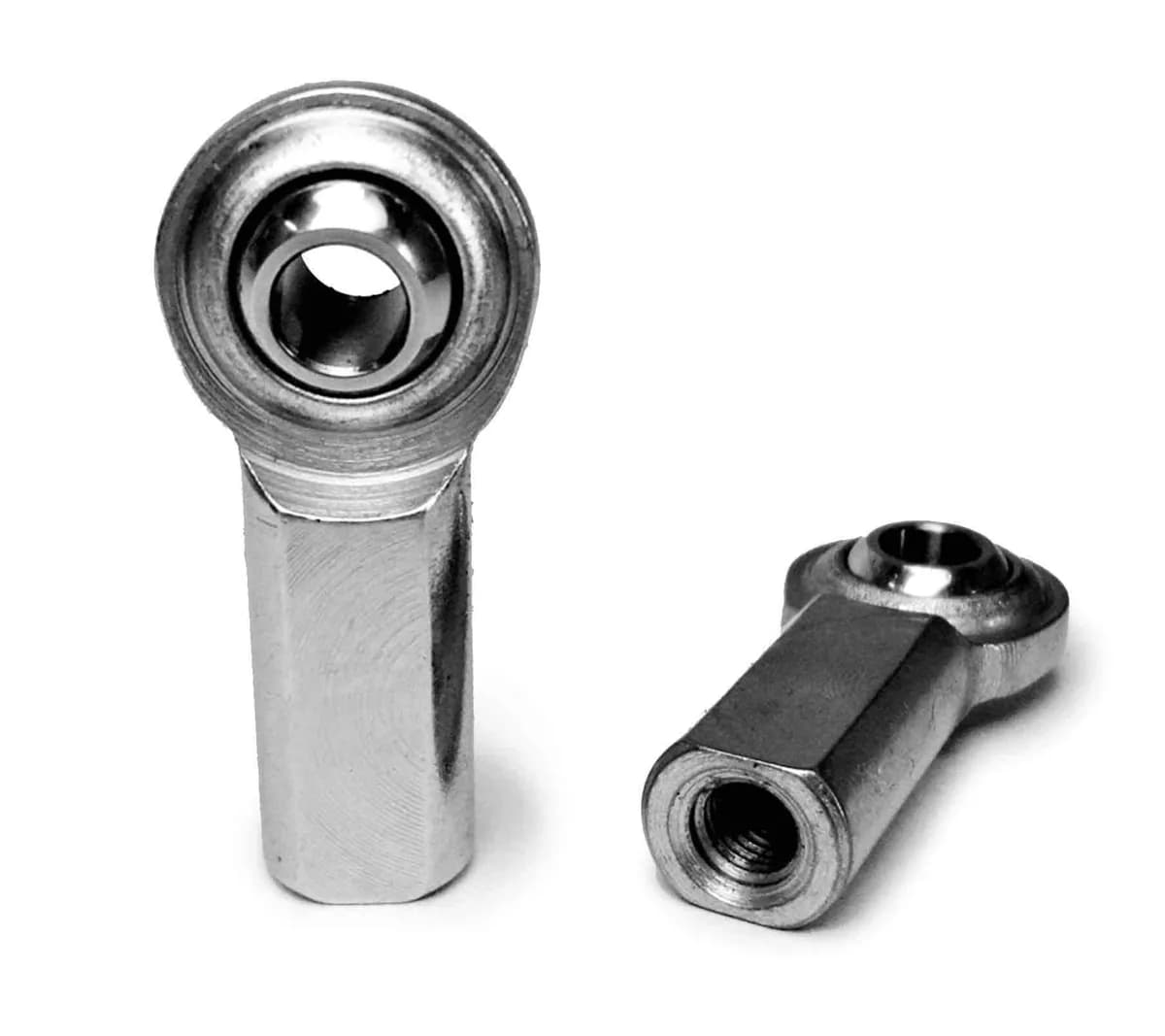

Universal Rod Ends Metric Female Stainless 304 Housing, PTFE Race M16 x 1.50 RH 2 Pack Quantity Per Package: This package includes two Spherical Rod Ends Product Name: Female Spherical Rod End Thread: Female M16 x 1.50 RH x 28mm Ball ID: 16mm Housing Material: Stainless Steel Finish: Zinc Clear Ball Finish: Hard Chrome Plated Bearing Race: PTFE Housing Width: 42.5mm Base of Rod End to Center of Ball: 64mm Ball Thickness: 21mm Ultimate Static Load Rating: 6300 lbs Common Other Names for this Product: heim joint, rose joint, Gelenkköpfe, Rotula Esféfico, Embouts, Teste a snodo Application: Our larger chrome moly Spherical Rod Ends are used as sway bar end links, panhard bars, control arms, three link and four link suspensions and strut tower braces. This size rod end is often used in hand or foot actuated push-pull linkages.

Common Accessories:
These Spherical Rod Ends are typically used with our WTF-M thread bungs, MHTconnecting tubes, male Spherical Rod Ends, jam nuts, and bolts.

Alternative Designs:
For lighter duty linkage applications, consider our ASFM (steel raced) series, our DXTF (nylon) series, DSTF (stainless) series, or DPF (bronze zerked) series.

Inch Alternative:
The inch equivalent to this series is our MTF series.

Warning:
Regardless of a specific product's name or marketing description, rod ends used in the wrong application will fail. We encourage our customers to know the load rating requirements of their application.
