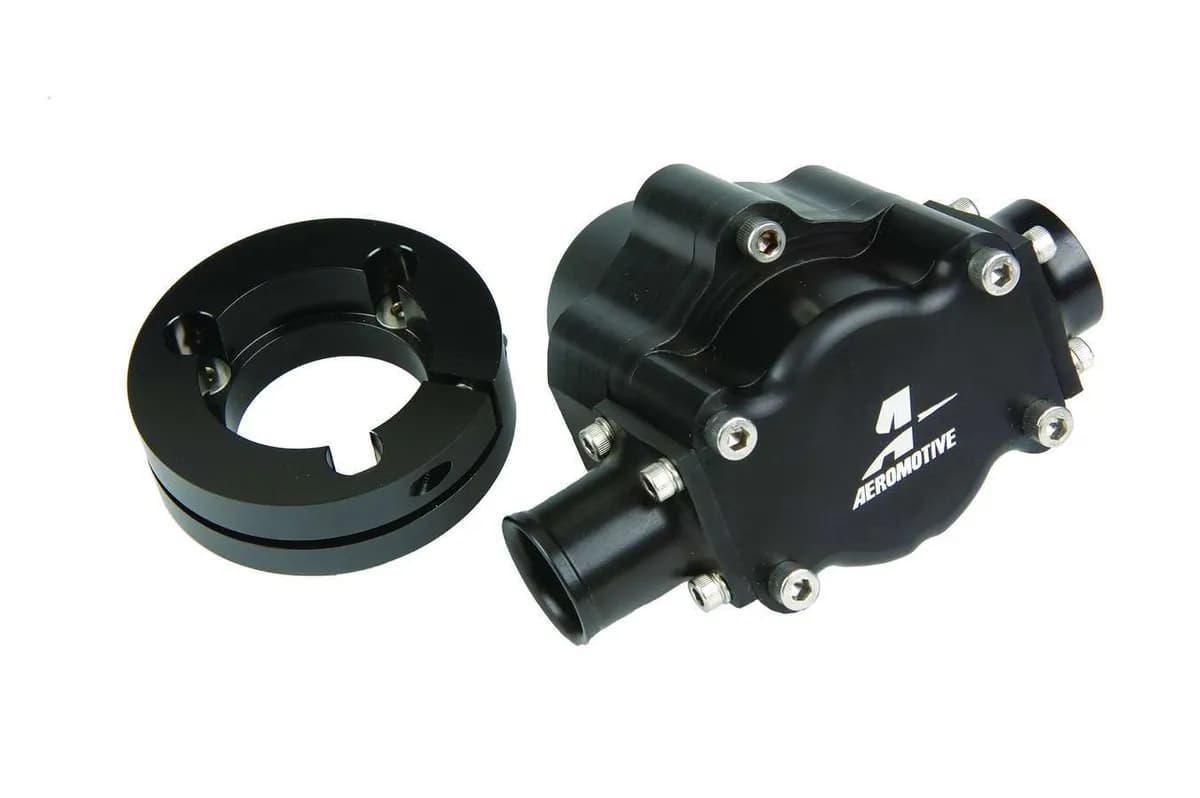

Aeromotive 12-Series Hex Drive Mechanical Pump

P/N 11117: 12 Series Hex Drive Fuel Pump 12-GPM Hex Drive Mechanical Fuel Pump Designed to feed serious EFI and Carbureted engines, gasoline, ethanol or methanol. The 12 Series Hex Drive Pump must be driven by a 3/8" female hex, allowing the pump to be driven from your camshaft or off the back of a properly prepared dry-sump oil pump. It may also be mounted off the engine, or in the back of the vehicle, driven by a Heavy Duty Cable Drive like that from Waterman Racing. It can be used in high or low pressure applications. Flows up to 12 GPM Naturally Aspirated EFI: 6,000+ FWHP on gas Up to 3,000 FWHP on methanol Forced Induction EFI: 5,000+ FWHP on gas Up to 2,000 FWHP on methanol High efficiency, Gerotor pumping mechanism. Tough, Type III hard coat anodized body. CNC Machined from 6061 T6 aircraft aluminum. Hex Drive Collar with 3-bolt Enderle bolt pattern. Standard male 3/8" hex driveshaft. Includes both 1.25' barb and AN-16 Male inlet. ORB-12 female outlet port. EFI applications require high-flow return style regulators: P/N 13132 , 13133 , 13137 or 13113 .

Sold Separately:
Electric Priming/Starting Kit: P/N 17301
