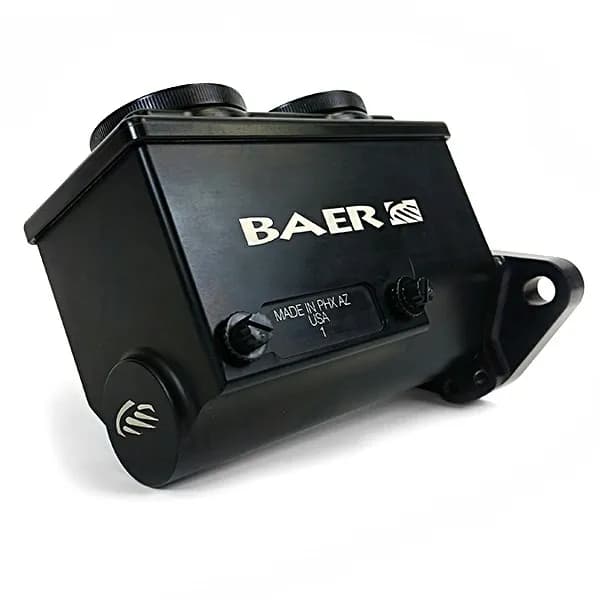

Remaster Master Cylinder 2-Bolt GM/Ford Black Anodized Finish Left Port 1.000 Inch Bore Baer Brakes

This Remaster master cylinder features a small, compact, 1-piece body machined out of 6061 T6 billet aluminum with a 1 inch bore, left side ports and a 2-bolt mounting flange fitting many Ford and GM applications. The billet top is attached with 6 allen screws and has two large billet aluminum, knurled screw-on caps making for easy filling without spillage. The unique outlet port design allows for either inverted flare (w/included removable seats) or banjo style, straight fittings. The Remaster is compatible on most long and short, w/included bullet, boosters or manual brake applications. Optional proportioning valves also available Features and Benefits: 2-Bolt Gm/Ford Firewall Mounting Bracket Fully machined 6061 T6 billet aluminum construction Unique 3/8-24 outlet port design allows for either inverted flare (w/included removable seats), banjo style or straight fittings. Left Side Ports Machined and knurled screw-on caps for easy access to fill without spillage Anodized Remasters feature laser-etched logos Ships in 1 Box ReMaster 2-Bolt Gm/Ford Master Cyl Assembly, black anodized, 1in. bore, left port. Please note, some long push-rod hydro-boost and vacuum boosters may require an additional spacer, p/n 6260258, to space the Remaster away from the booster push-rod.

Details:
Area: 0.78 Bleeder Hoses Included: No Bleeder Screw Included: No Bore Size: 1 Box Count: 1 Brake Booster Included: No Brake Pressure Switch(s) Included: No Connector For Warning Light: No Emission Code: 6 Export Description: Brake Components Fittings Included: Yes Flange Type: 2 Bolt GM/Ford Gasket Or Seal Included: No Grade Type: Premium Includes: 1x Master Cylinder Assembly, 2 Brass Seats, 2 Tube Nuts Master Cylinder Cap Included: Yes Master Cylinder Material: 6061 T6 Billet Aluminum Master Cylinder Outlet Port Fittings: Banjo w/o Brass Seat, 3/16 Inch Inverted Flare and Tube Nuts w/ Brass Seat Master Cylinder Outlet Port Quantity: 2 Master Cylinder Outlet Port Size: 3/8/-24 Inch Master Cylinder Port Exit: Left side Mounting Hardware Included: No Quantity: Sold Individually Remaster Body Color: Black Remaster Body Finish: Anodized Remaster Caps Color: Black Remaster Caps Finish: Anodized Remaster lid Color: Black Remaster lid Finish: Anodized Removable Seats: Yes Reservoir Included: Yes Reservoir Material: 6061 T6 Billet Aluminum Reservoir Size: 7oz per reservoir, Fill to 75 percent or 5.25oz per reservoir Reservoir Style: Integral Reservoir Type: Dual Sensor Included: No Series: ReMaster Stroke: 1.1 Volume Ratio: 0.0840277777777778
