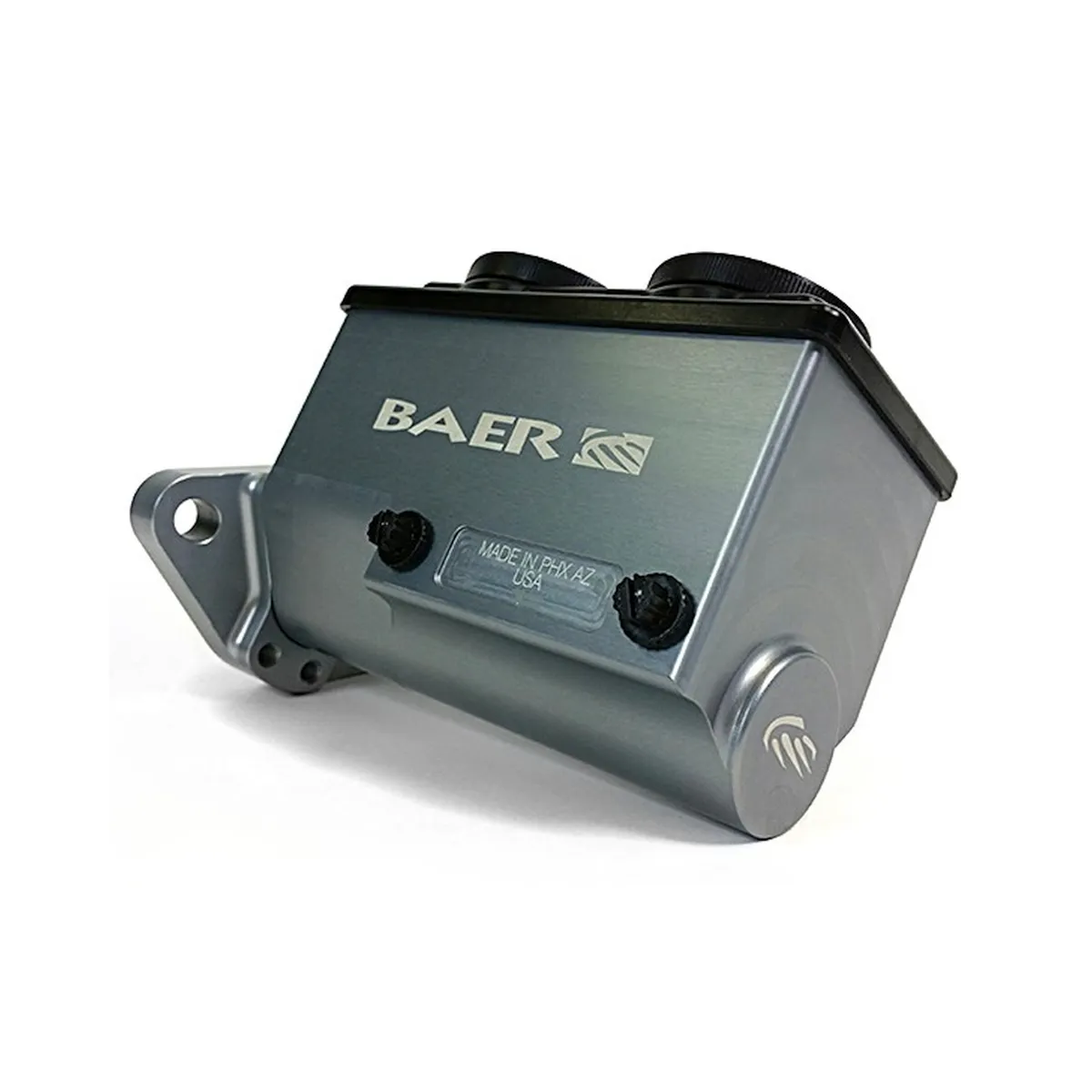

Remaster Master Cylinder 2-Bolt GM/Ford Gray Anodized Finish Right Port 0.875 Inch (7/8 Inch) Bore Baer Brakes

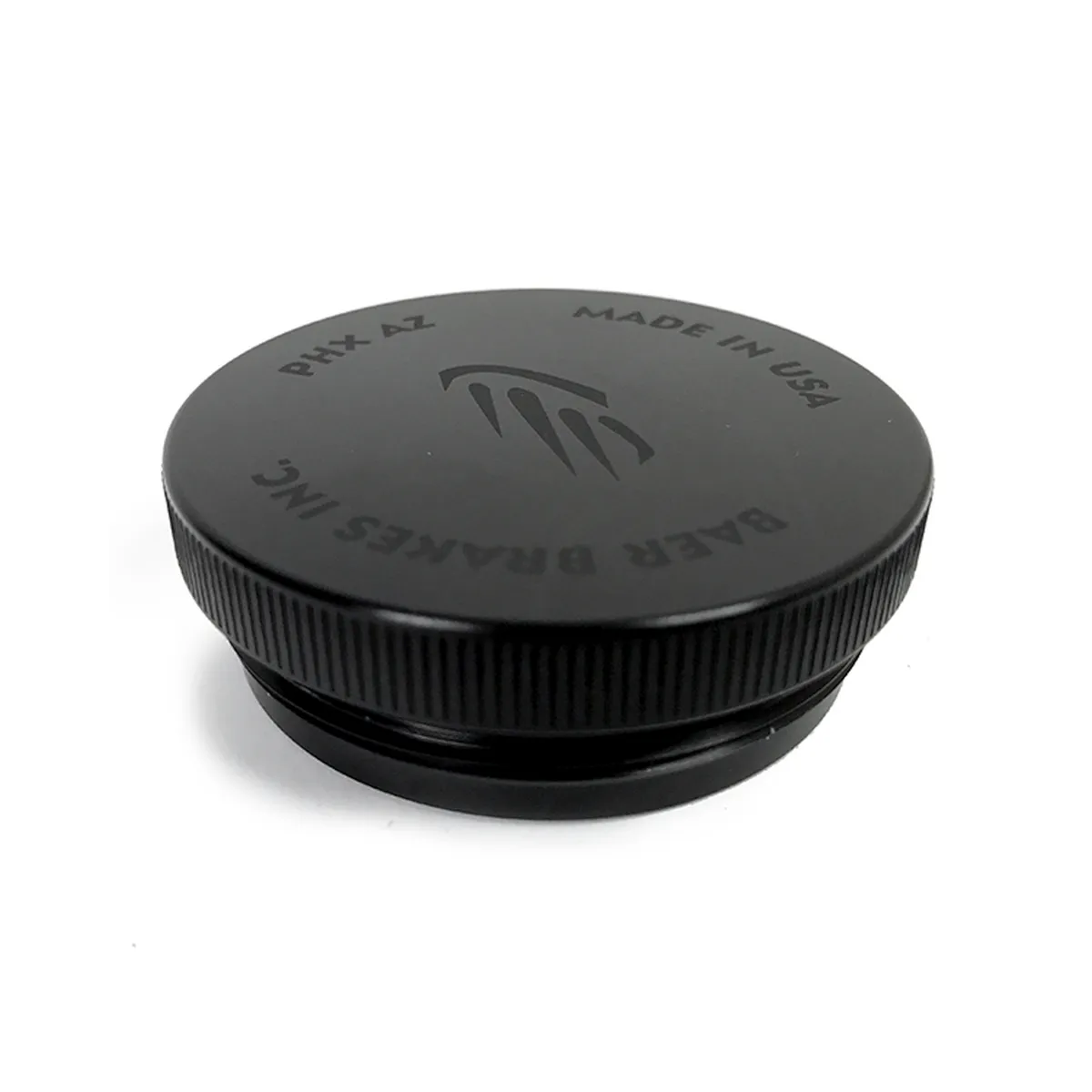

This Remaster master cylinder features a small, compact, 1-piece body machined out of 6061 T6 billet aluminum with a 7/8 inch bore, right side ports and a 2-bolt mounting flange fitting many Ford and GM applications. The billet top is attached with 6 allen screws and has two large billet aluminum, knurled screw-on caps making for easy filling without spillage. The unique outlet port design allows for either inverted flare (w/included removable seats) or banjo style, straight fittings. The Remaster is compatible on most long and short, w/included bullet, boosters or manual brake applications. Optional proportioning valves also available Features and Benefits: 2-Bolt Gm/Ford Firewall Mounting Bracket Fully machined 6061 T6 billet aluminum construction Unique 3/8-24 outlet port design allows for either inverted flare (w/included removable seats), banjo style or straight fittings. Right Side Ports Machined and knurled screw-on caps for easy access to fill without spillage Anodized Remasters feature laser-etched logos Ships in 1 Box ReMaster 2-Bolt Gm/Ford Master Cyl Assembly, gray anodized, 7/8in. bore, right port. Please note, some long push-rod hydro-boost and vacuum boosters may require an additional spacer, p/n 6260258, to space the Remaster away from the booster push-rod.

Details:
Area: 0.601 Bleeder Hoses Included: No Bleeder Screw Included: No Bleeder Screw Quantity: None Bore Size: 7/8, 0.875 Inch Bore Type: Straight Box Count: 1 Brake Booster Included: No Brake Pressure Switch Quantity: None Brake Pressure Switch Required: No Brake Pressure Switch(s) Included: No Connector For Warning Light: No Dust Boot Included: No Emission Code: 6 Export Description: Brake Components Fittings Included: Yes Flange Type: 2 Bolt GM/Ford Gasket Or Seal Included: No Grade Type: Premium Includes: 1x Master Cylinder Assembly, 2 Brass Seats, 2 Tube Nuts Master Cylinder Bore Diameter: 0.875 Inch Master Cylinder Cap Included: Yes Master Cylinder Material: 6061 T6 Billet Aluminum Master Cylinder Outlet Port Fittings: Banjo w/o Brass Seat, 3/16 Inch Inverted Flare and Tube Nuts w/ Brass Seat Master Cylinder Outlet Port Quantity: 2 Master Cylinder Outlet Port Size: 3/8/-24 Inch Master Cylinder Port Exit: Right Side Mounting Bracket Included: Yes Mounting Hardware Included: No Mounting Hole Diameter: 0.4 Mounting Hole Quantity: 2 Pedal Rod ID: 0.475 Piston Quantity: 2 Port Quantity: 2 Primary Bore Diameter: 0.875 Inch Primary Outlet Flare Type: Inverted, Open Primary Outlet Thread Size: 3/8 Inch - 24 Push Rod Included: No Quantity: Sold Individually Remaster Body Color: Gray Remaster Body Finish: Anodized Remaster Caps Color: Black Remaster Caps Finish: Anodized Remaster lid Color: Black Remaster lid Finish: Anodized Removable Seats: Yes Reservoir Included: Yes Reservoir Material: 6061 T6 Billet Aluminum Reservoir Size: 7oz per reservoir, Fill to 75 percent or 5.25oz per reservoir Reservoir Style: Integral Reservoir Type: Dual Secondary Bore Diameter: 0.875 Inch Secondary Outlet Flare Type: Inverted, Open Secondary Outlet Thread Size: 3/8 Inch - 24 Sensor Included: No Series: ReMaster Stroke: 1.1 Volume Ratio: 0.0840277777777778
