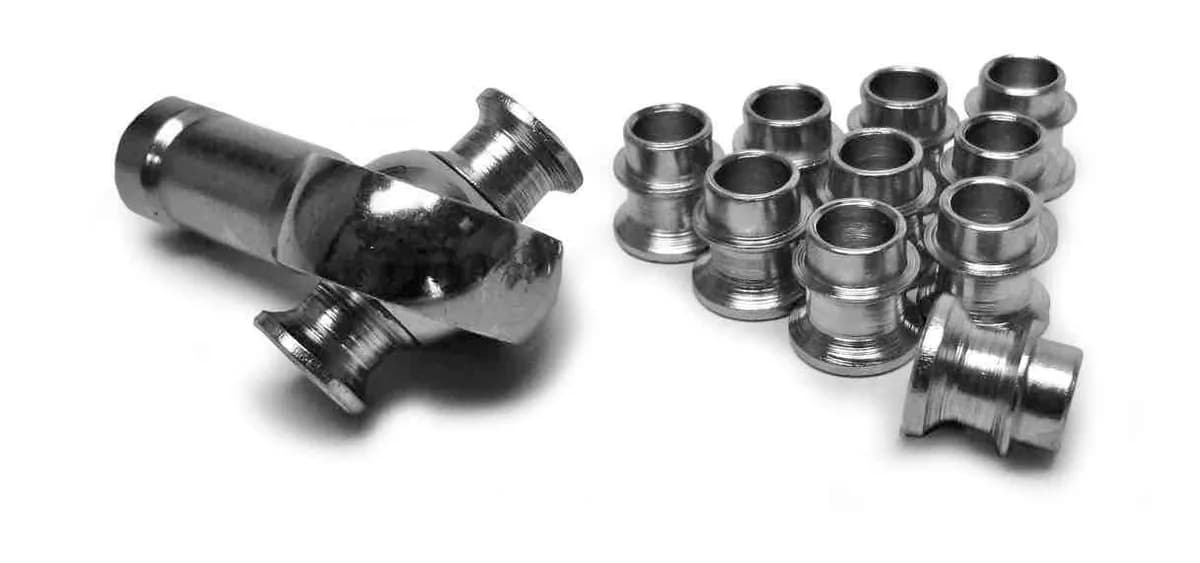

Universal Rod End Misalignment Inserts For 8mm Rod Ends Straight Style Yields 6mm Bore Stainless 10 Pack Quantity Per Package: This package includes 10 bushings (enough for five spherical rod ends). This item does not include the spherical rod end.

Product Name:
High Misalignment Insert Bushing Fits Rod End Bore Size of: 8mm Bore Size of Insert: 6mm Material: Stainless Steel Length of Bushing After Installation: Each bushing adds 7.47mm of width to the rod end, or 14.94mm overall (because two bushings are required per rod end).

Diameter of Flare:
11.10mm Common Other Names for this Product: heim joint bushings, tapered rod end spacers, rod end inserts.

Application:
High Misalignment Bushings are used to increase the misalignment angle of a spherical rod end bearing. Two High Misalignment Bushings are required for each spherical rod end bearing. The high misalignment inserts are a simple slip fit. These bushings provide for more clearance so the bolt head does not minimize the natural cone angle of the spherical rod end bearing.

Typical Mating Part:
These bushings are commonly used in conjunction with our DXTM-8 chrome moly spherical rod end bearing, and our DSTM-8 stainless steel teflon race spherical rod end bearing. They can also be used with some spherical plain bearings, and most 8mm bore i.d. spherical rod ends - male or female.

Inch Alternative:
The inch equivalent to this series is our HMBSS series.
