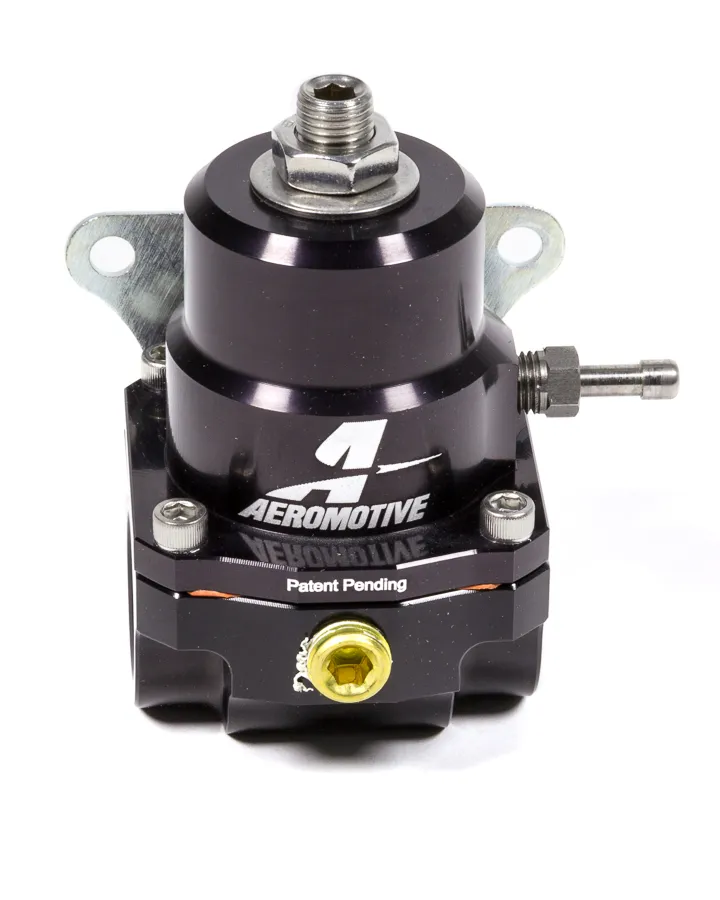

Aeromotive New A1000 Gen-II EFI Regulator - ORB-8
Fuel Pressure Regulator - A1000 Gen II - 40 to 75 psi - In-Line - 8 AN Female O-Ring Inlet - 8 AN Female O-Ring Outlet - 6 AN O-Ring Return - 1/8 in NPT Port - Black Anodized - E85 / Gas / Diesel / Methanol - Each
Secure Checkout
SSL Encrypted
Easy Returns
30-day policy
Guaranteed Fitment
Or your money back
Pay Over Time
With Affirm
A1000 Gen-II EFI Regulator 40-70 PSI EFI Regulator with ORB ports High Performance, adjustable EFI regulator designed for medium to high horsepower applications. This regulators features Aeromotive’s high-flow design, superb pressure control and legendary durability. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications. Engineered for A1000 class and smaller pumps. Gas, ethanol, methanol and diesel compatible. 40-75 PSI adjustable base pressure range. 1:1 vacuum/boost reference capability. 1/8″ NPT dedicated gauge port. P/N 13138 with (2) ORB-06 inlet/outlet ports P/N 13139 with (2) ORB-08 inlet/outlet ports P/N 13140 with (2) ORB-10 inlet/outlet ports All P/N's include (1) ORB-06 return port. Patent No. D763,409 Recommended Fittings for inlet/outlet ports: P/N 15605 ORB-08 to AN-06 for AN-06 fuel line. P/N 15607 ORB-08 to AN-08 for AN-08 fuel line. P/N 15461 ORB-08 to AN-10 for AN-10 fuel line.
Recommended fittings for return port:
P/N 15606 ORB-06 to AN-06 for AN-06 fuel line. P/N 15649 ORB-06 to AN-08 for AN-08 fuel line.
Overview
Fuel Pressure Regulator
- A1000 Gen II - 40 to 75 psi
- In-Line - 8 AN Female O-Ring Inlet - 8 AN Female O-Ring Outlet - 6 AN O-Ring Return - 1/8 in NPT Port
- Black Anodized
- E85 / Gas / Diesel / Methanol
- Each
