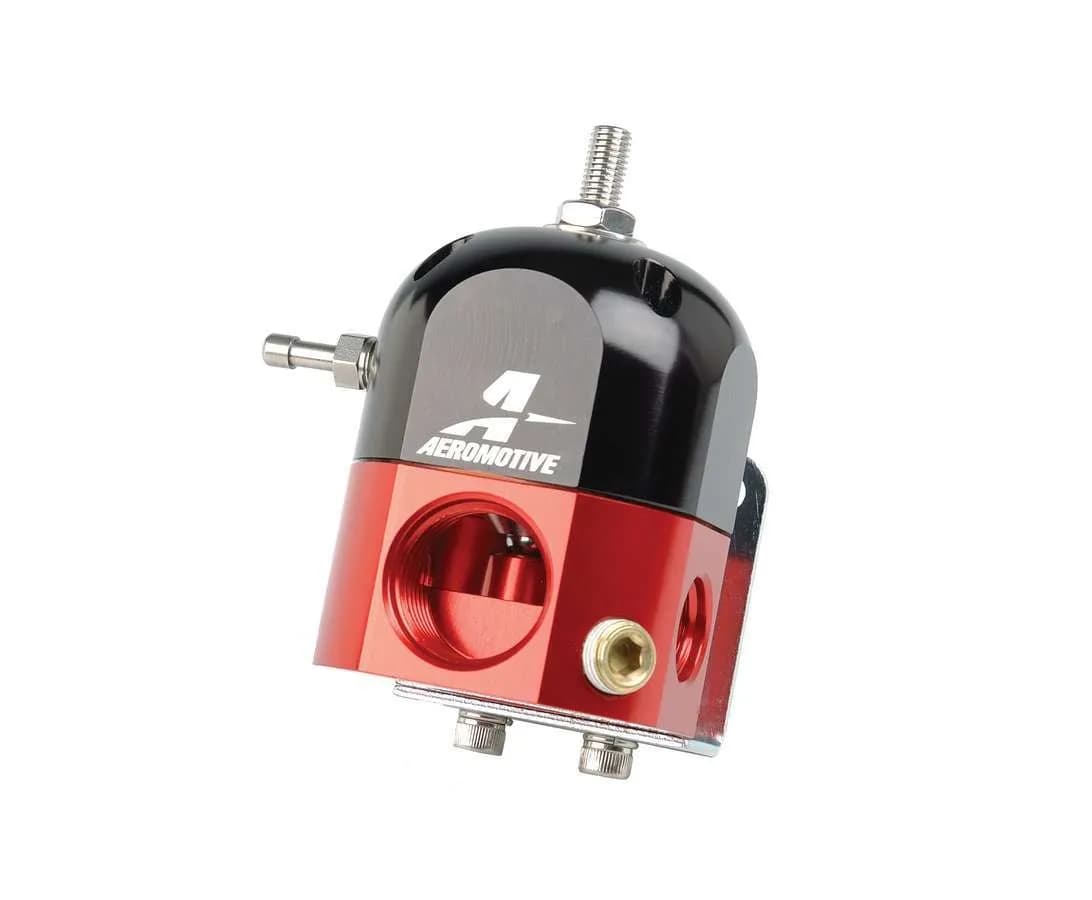

A1000 Return Style Carbureted Fuel Pressure Regulator
Fuel Pressure Regulator - A1000 - 3 to 15 psi - In-Line - 10 AN Female O-Ring Inlet - Dual 6 AN Female O-Ring Outlets - 8 AN O-Ring Return - 1/8 in NPT Port - Black / Red Anodized - E85 / Gas / Diesel - Each
Secure Checkout
SSL Encrypted
Easy Returns
30-day policy
Guaranteed Fitment
Or your money back
Pay Over Time
With Affirm
P/N 13204: A1000 Carbureted Return Style Regulator The A1000 return style Regulator was designed for use with our A1000 Fuel Pump or similar style EFI pumps in a carbureted application. This regulator is perfect for naturally aspirated or 'blow-through' supercharged engines. Base fuel pressure adjustable from 3-15 PSI. (1) ORB-10 inlet port and (1) ORB-08 return port. (2) ORB-06 outlet ports and 1/8" NPT gauge port.
Fuel pressure rises on a 1:
1 ratio when referencing boost. Return style design provides the ultimate, dynamic fuel delivery system. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications. EFI conversions will require a larger-than-stock return line for proper low pressure control.
Note:
Requires AN-08 return line from bottom of regulator back to top of the tank.
Overview
Fuel Pressure Regulator
- A1000 - 3 to 15 psi
- In-Line - 10 AN Female O-Ring Inlet
- Dual 6 AN Female O-Ring Outlets - 8 AN O-Ring Return - 1/8 in NPT Port
- Black / Red Anodized
- E85 / Gas / Diesel
- Each
