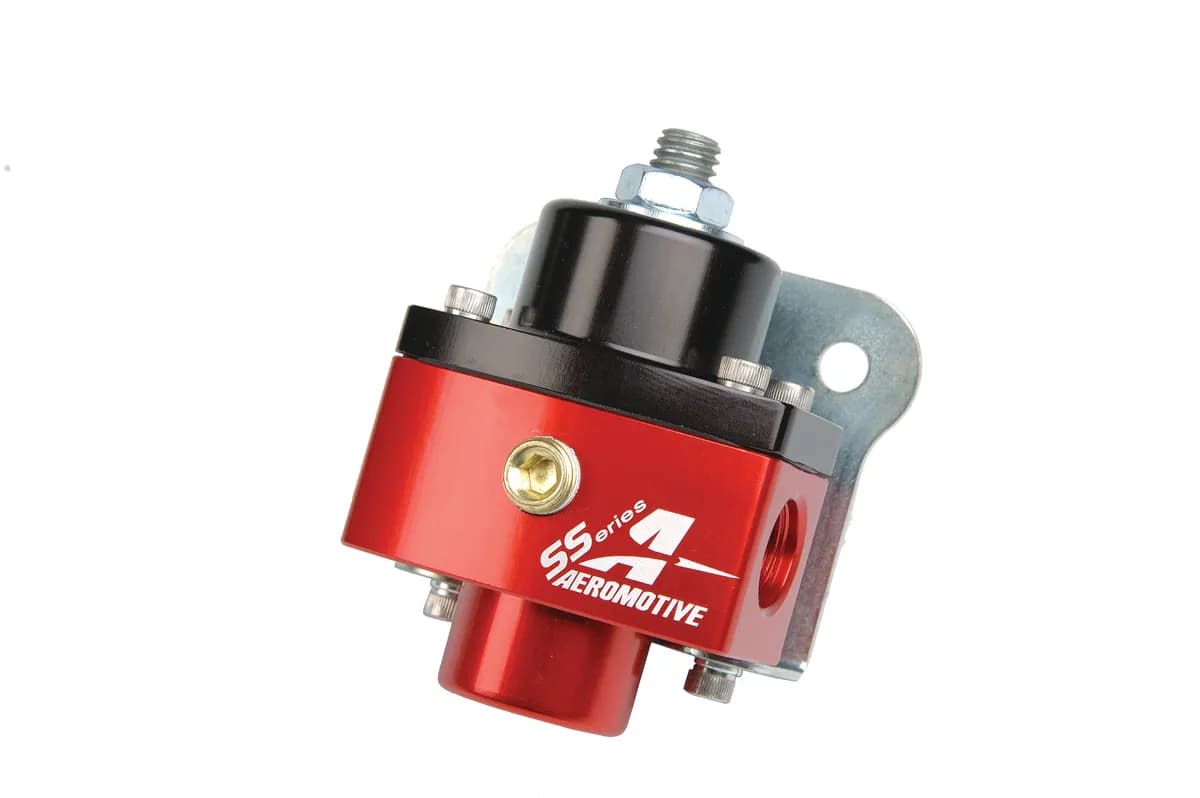

SS-Series Carbureted Dead-Head Fuel Pressure Regulator with ORB-06 Ports
Fuel Pressure Regulator - SS-Series - Adjustable - 5 to 10 psi - In-Line - 6 AN Female O-Ring Inlet - 6 AN Female O-Ring Outlet - 1/8 in NPT Port - Black / Red Anodized - Gas - Each
Secure Checkout
SSL Encrypted
Easy Returns
30-day policy
Guaranteed Fitment
Or your money back
Pay Over Time
With Affirm
P/N 13201 SS-Series ORB-06 Carb Regulator Dead-Head Regulator for up to 750 FWHP on gas. Specifically designed for carbureted street or racing engines on gasoline, the SS-Series adjustable regulator offers higher flow, quicker response and less pressure creep than competing two-port designs. Popular in circle track applications up to and including NASCAR® level horsepower and as a dedicated nitrous regulator. Not rated for alcohol fuels, ethanol or methanol. Adjustable from 5-10 PSI. P/N 13201 provides ORB-06 inlet and outlet ports. Dedicated 1/8" NPT gauge port. Regulator re-seats when the needle and seat closes, preventing pressure creep. Mounting bracket included. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications. Not rated for alcohol fuels, ethanol or methanol. Available in kit form with port fittings, braided line and hose ends for Holley style Carbs under P/N 17120 .
Fitting only kits available:
P/N 15108 : 3x ORB-06 to AN-06 port fittings.
P/N 15203 :
3x ORB-06 to AN-08 port fittings.
Overview
Fuel Pressure Regulator
- SS-Series
- Adjustable - 5 to 10 psi
- In-Line - 6 AN Female O-Ring Inlet - 6 AN Female O-Ring Outlet - 1/8 in NPT Port
- Black / Red Anodized
- Gas
- Each
