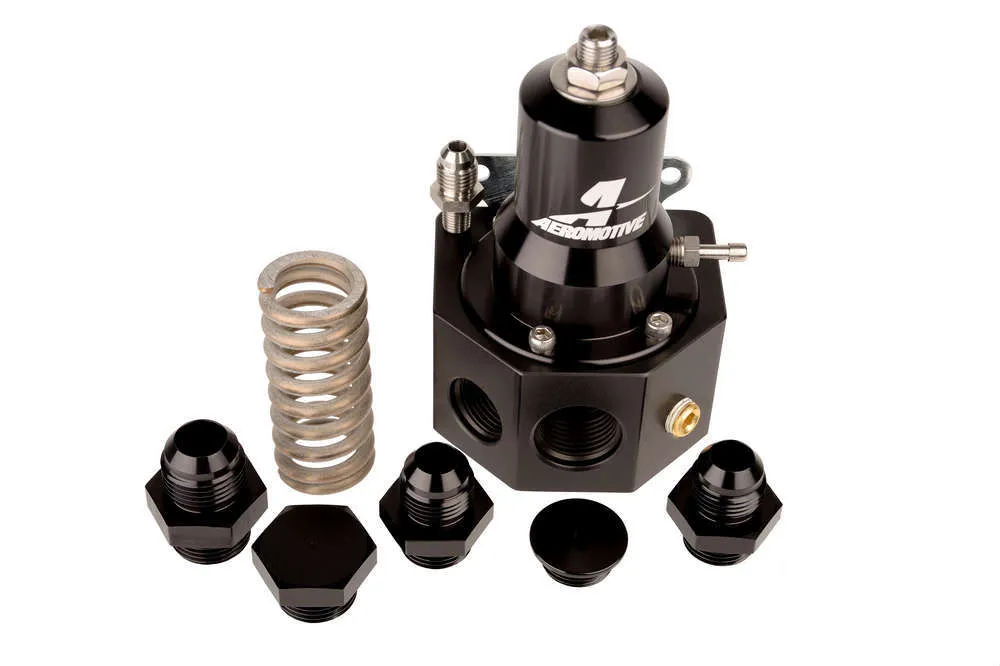

Pro-Series EFI Fuel Pressure Regulator & Fitting Kit
Fuel Pressure Regulator - Pro-Series EFI - 30 to 125 psi - In-Line - 10 AN Female O-Ring Inlet - 8 AN Female O-Ring Outlet - 10 AN Female O-Ring Return - 1/8 in NPT Port - Fittings Included - E85 / Gas / Diesel - Each
Secure Checkout
SSL Encrypted
Easy Returns
30-day policy
Guaranteed Fitment
Or your money back
Pay Over Time
With Affirm
The tuner's choice for high horsepower EFI applications. The Pro-Series Regulator can support up to 2000 HP. For engines requiring high volume, high pressure fuel delivery the Pro-Series Boost Reference EFI Regulator is a perfect fit for serious power. Adjustable base pressure from 30-75 PSI with the spring installed. Adjustable base pressure from 75-125 PSI with the optional spring included. Ideal for Pro-Series, Brushless 3.5 and Brushless 5.0 Electric Pumps using the 30-75 PSI spring. Suitable for 6-GPM mechanical pumps using both the standard and high pressure spring. Auxiliary ports available for nitrous applications, pressure gauges and transducers.
References Vacuum/Boost on a 1:
1 ratio. Includes two boost line adapters, one barbed for rubber hose, the other for AN-04 braided line. (Prevents blow-off in high boost applications) Dedicated 1/8" NPT port. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications. Includes Aeromotive's radiused tapered flare fittings: (3) ORB-08 and (1) ORB-10 inlet ports, two with AN-08 flare adapters. (1) ORB-10 return port with AN-10 flare adapter port plugs included. Virtually indestructible electroless nickel-plating finish on the body with type II bright dip black anodized cap.
Overview
Fuel Pressure Regulator
- Pro-Series EFI - 30 to 125 psi
- In-Line - 10 AN Female O-Ring Inlet - 8 AN Female O-Ring Outlet - 10 AN Female O-Ring Return - 1/8 in NPT Port
- Fittings Included
- E85 / Gas / Diesel
- Each
