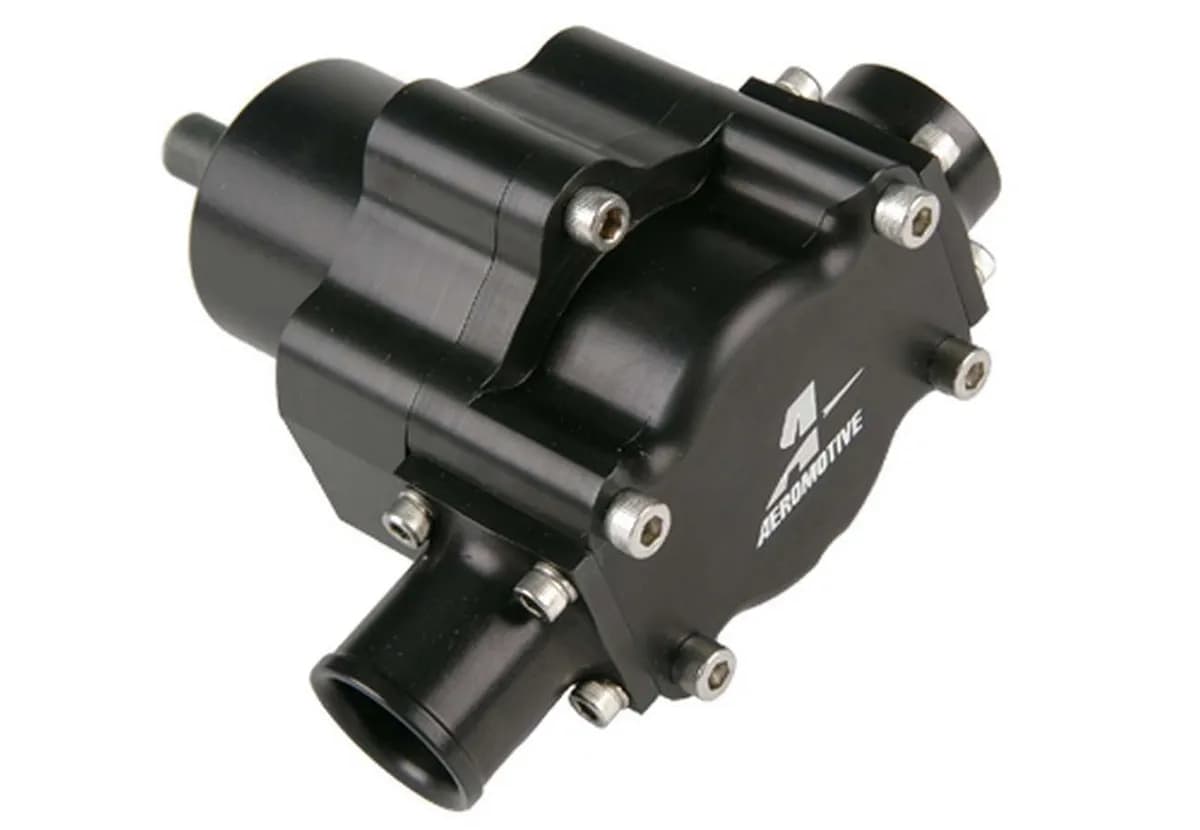

Aeromotive 12-Series Belt Drive Mechanical Pump
Fuel Pump - Atomic Belt Drive - Belt or Hex Driven - In-Line - 1-1/4 in Hose Barb Inlet - 12 AN Female O-Ring Outlet - Black - E85 / Gas - Each
Secure Checkout
SSL Encrypted
Easy Returns
30-day policy
Guaranteed Fitment
Or your money back
Pay Over Time
With Affirm
P/N 11115: 12 Series Belt Drive Fuel Pump 12-GPM Belt Drive Mechanical Fuel Pump Designed to feed serious EFI and Carbureted engines, gasoline, ethanol or methanol. The 12 Series Belt Drive Pump must be driven by a pulley and cog drive belt allowing the pump to be driven from your crankshaft. It can be used in high or low pressure applications. Flows up to 12 GPM Naturally Aspirated EFI: 6,000+ FWHP on gas Up to 3,000 FWHP on methanol Forced Induction EFI: 5,000+ FWHP on gas Up to 2,000 FWHP on methanol High efficiency, Gerotor pumping mechanism. Tough, Type III hard coat anodized body. CNC Machined from 6061 T6 aircraft aluminum. Includes both 1.25' barb and AN-16 Male inlet. ORB-12 female outlet port. EFI applications require high-flow return style regulators: P/N 13132 , 13133 , 13137 or 13113 .
Sold Separately:
Mounting Bracket: P/N 11706 Cog Pulley: P/N 21109 .
Electric Priming/Starting Kit:
P/N 17301
Overview
Fuel Pump
- Atomic Belt Drive
- Belt or Hex Driven
- In-Line - 1-1/4 in Hose Barb Inlet - 12 AN Female O-Ring Outlet
- Black
- E85 / Gas
- Each
