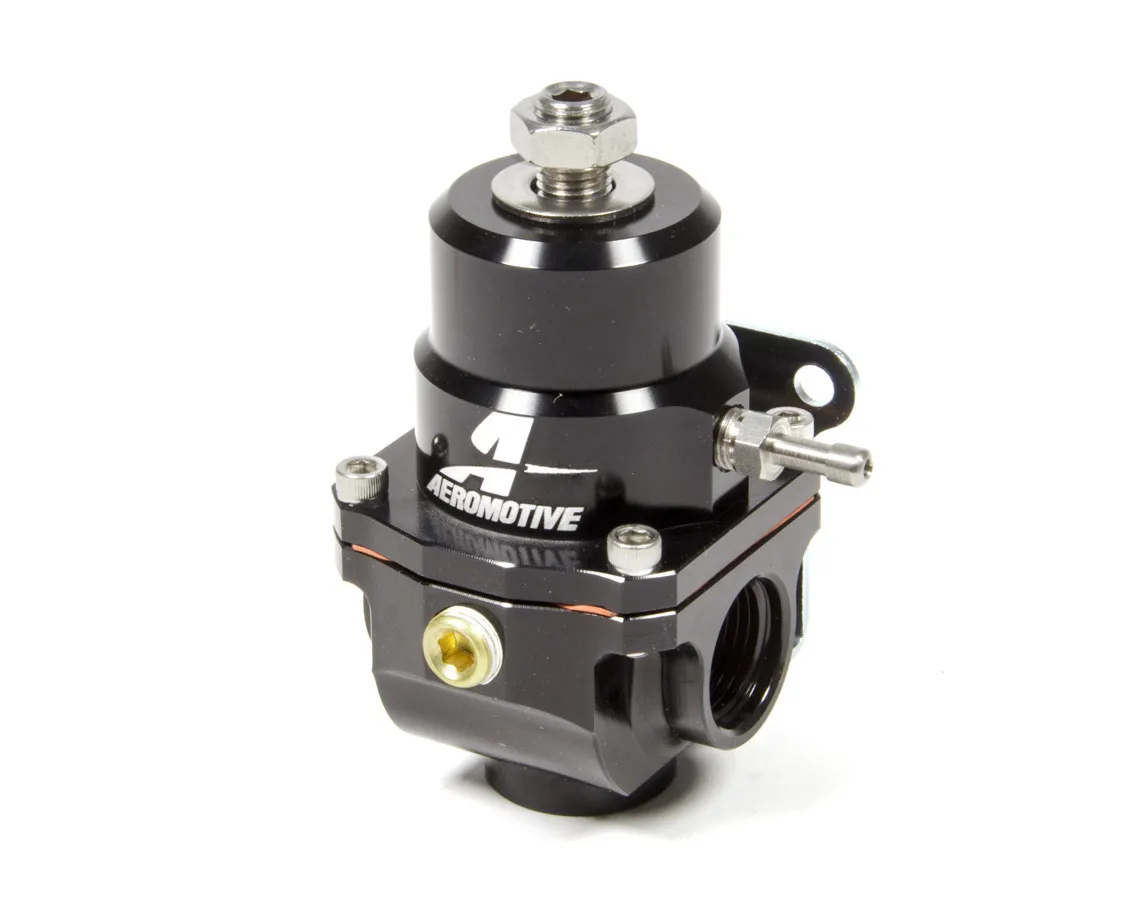

X1 Series Carbureted Return Style Fuel Pressure Regulator
Fuel Pressure Regulator - X1 Series - 3 to 20 psi - In-Line - 8 AN Female O-Ring Inlet - 8 AN Female O-Ring Outlet - 8 AN Female O-Ring Return - 1/8 in NPT Port - Black Anodized - E85 / Gas / Methanol - Each
Secure Checkout
SSL Encrypted
Easy Returns
30-day policy
Guaranteed Fitment
Or your money back
Pay Over Time
With Affirm
P/N 13304 X1 Carbureted Return Style Regulator Carbureted return style Regulator for Return Style Systems Base fuel pressure adjustable from 3-20 PSI.
Vacuum/Boost reference capability. 1:
1 rising rate for blow-through carburetors. Gasoline, ethanol, alcohol and diesel compatible. 2
- ORB -08 inlet/outlet ports on the sides. 1
- ORB-08 return port on the bottom port. 1 - 1/8" NPT Gauge Port with plug. 1/16" NPT Boost Port with 5/32" hose barb. Compatible with both X1 EFI Conversion kits. 0.313" return style with matching spring and poppet. Handles up to 150 GPH with AN-08 return line. Suitable for any Aeromotive pump up to A1000. Mounting bracket included (not shown). This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
X1 Regulator Service/Conversion Kits:
Include Seat, diaphragm/poppet assembly and spring P/N 13014 150 GPH 0.313" Carb Service Kit P/N 13013 150 GPH 0.188" EFI Conversion Kit P/N 13015 250 GPH 0.313" EFI Conversion Kit
Overview
Fuel Pressure Regulator
- X1 Series - 3 to 20 psi
- In-Line - 8 AN Female O-Ring Inlet - 8 AN Female O-Ring Outlet - 8 AN Female O-Ring Return - 1/8 in NPT Port
- Black Anodized
- E85 / Gas / Methanol
- Each
