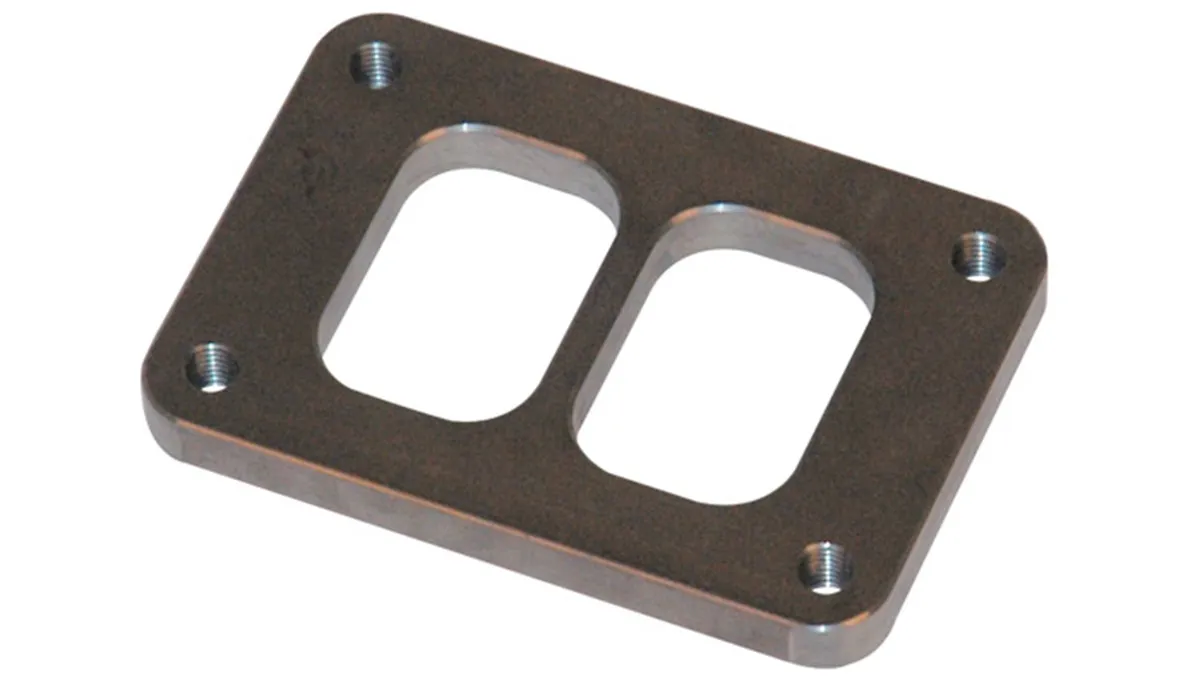

Name: Turbo Inlet Flange; 69.9mm Bhcch; 82.55mm Bhccw; M10x1.5 Bhts; 95mm Overall h; 108mm Overall w; 0.5 In. Thickness; 50.3mm Port h; For T04 Divided Inle
Brand: Vibrant Performance
SKU: 1442
Price: 59.99 USD
Availability: InStock

Turbo Inlet Flange; 69.9mm Bhcch; 82.55mm Bhccw; M10x1.5 Bhts; 95mm Overall h; 108mm Overall w; 0.5 In. Thickness; 50.3mm Port h; For T04 Divided Inlet; 304 Stainless Steel;

MPN: 1442UPC: 00690092180249

In Stock

Almost gone! Only 2 remaining

$59.99$80.07SAVE 25%

Starting at $5/mowithaffirm

1 Years

Turbo Inlet Flange - 0.5 in Thick - Stainless - T4 - Divided - Each

Secure Checkout

SSL Encrypted

Easy Returns

30-day policy

Guaranteed Fitment

Or your money back

Pay Over Time

With Affirm

Usually ships in 1-3 business days

1 Year Limited Warranty,Stainless Steel,Bolt Pattern 3.25 in. x 2.75 in.,Prevents Warping Due To High Heat,Drilled Holes

Overview

Turbo Inlet Flange - 0.5 in Thick
- Stainless
- T4
- Divided
- Each

Weight	1.53 lbs
Length	6.95 in
Width	5.95 in
Height	0.55 in
Part Number	1442
UPC	00690092180249
Billable Weight	1.51
Bolt Hole Center to Center Height	69.85 MM
Bolt Hole Center to Center Width	82.55 MM
Bolt Hole Thread Size	M10 x 1.5
Color	RGB
Country of Origin	TW
Dimensional Weight	1.51 PG
Emissions	Emissions Compliance Exempt
Hazardous Material	N
Height	0.51
Item Quantity/Size	1 EA
Length	7.01
Material	304 Stainless Steel
Overall Height	95 MM
Overall Port Width	74.4 MM
Overall Width	108 MM
Port Height	50.3 MM
Port Width	34.5 MM
Qty Per Application	Normal Quantity Used in a Vehicle:1 Box
Sale Segment	Turbo Flanges and Fittings

Turbo Inlet Flange; 69.9mm Bhcch; 82.55mm Bhccw; M10x1.5 Bhts; 95mm Overall h; 108mm Overall w; 0.5 In. Thickness; 50.3mm Port h; For T04 Divided Inlet; 304 Stainless Steel;
