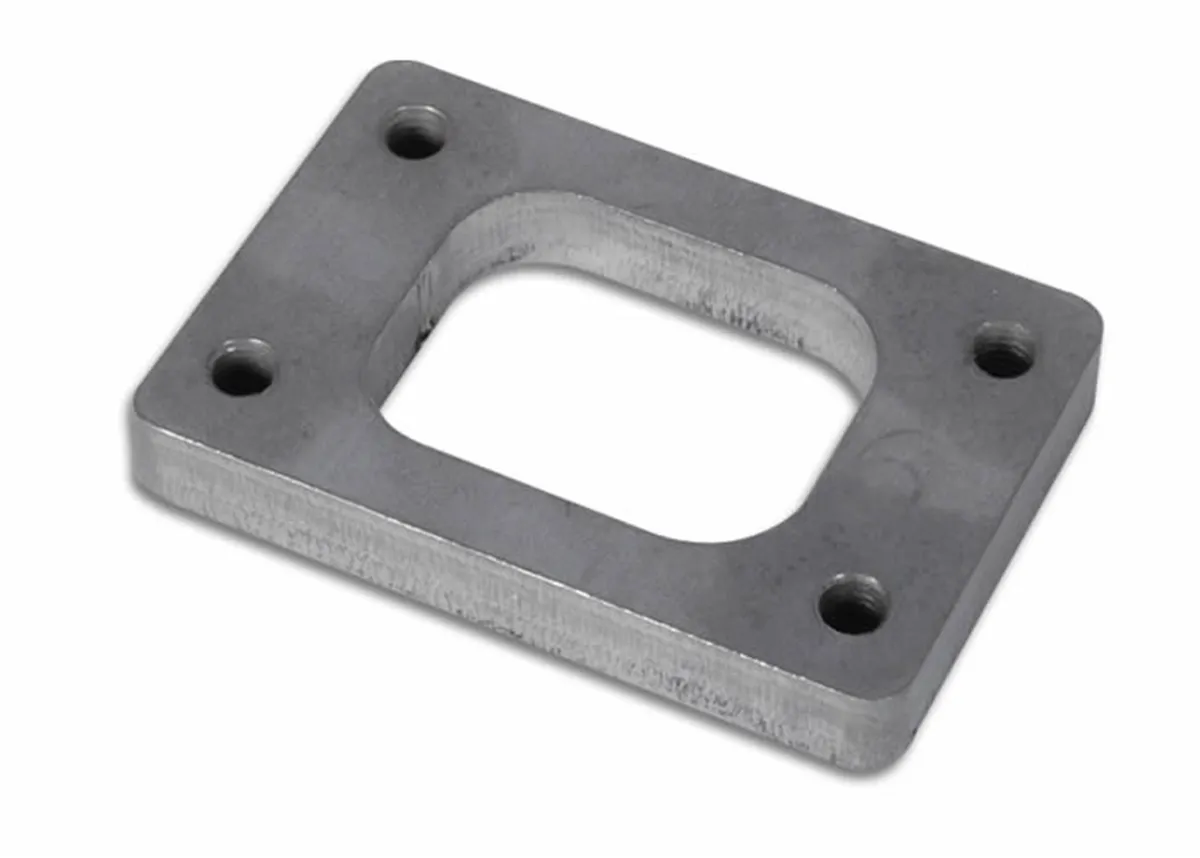

Name: Vibrant Performance Turbocharger Flange for Turbo Inlet Flange; 39.9mm Bhcch; 72.8mm Bhccw; M8x1.25 Bhts; 62.7mm Overall h; 91.6mm Overall w; 0.5 In.
Brand: Vibrant Performance
SKU: 14300
Price: 28.5 USD
Availability: InStock

Vibrant Performance Turbocharger Flange for Turbo Inlet Flange; 39.9mm Bhcch; 72.8mm Bhccw; M8x1.25 Bhts; 62.7mm Overall h; 91.6mm Overall w; 0.5 In. Thickness; 39.7mm Port h; 50.8mm Port w; For T25/T28/Gt25; Mild Steel - Part #14300

In Stock

MPN: 14300UPC: 00690092121594

Almost gone! Only 1 remaining

$28.50$40.13SAVE 29%

6 Months

Turbo Inlet Flange - 4-Bolt - 0.5 in Thick - Steel - Various Garrett and Borg Warner Turbos - Each

Secure Checkout

SSL Encrypted

Easy Returns

30-day policy

Guaranteed Fitment

Or your money back

Pay Over Time

With Affirm

Usually ships in 1-3 business days

1018 Mild Steel,Tapped Holes,0.5 in. Thick To Prevent Warping,Bolt Pattern 2.85 in. x 1.60 in.,6 Month Limited Warranty

Overview

Turbo Inlet Flange - 4-Bolt - 0.5 in Thick
- Steel
- Various Garrett and Borg Warner Turbos
- Each

Weight	0.785 lbs
Length	7.01 in
Width	6 in
Height	0.55 in
Part Number	14300
UPC	00690092121594
Billable Weight	0.79
Bolt Hole Center to Center Height	39.9 MM
Bolt Hole Center to Center Width	72.8 MM
Bolt Hole Thread Size	M8 x 1.25
Color	RGB
Country of Origin	TW
Dimensional Weight	0.79 PG
Emissions	Emissions Compliance Exempt
Hazardous Material	N
Height	0.51
Item Quantity/Size	1 EA
Length	7.01
Material	Mild Steel
Overall Height	62.7 MM
Overall Port Width	50.8 MM
Overall Width	91.61 MM
Port Height	39.7 MM
Port Width	50.8 MM
Qty Per Application	Normal Quantity Used in a Vehicle:1 Box
Sale Segment	Turbo Flanges and Fittings

Vibrant Performance Turbocharger Flange for Turbo Inlet Flange; 39.9mm Bhcch; 72.8mm Bhccw; M8x1.25 Bhts; 62.7mm Overall h; 91.6mm Overall w; 0.5 In. Thickness; 39.7mm Port h; 50.8mm Port w; For T25/T28/Gt25; Mild Steel - Part #14300
