Name: Vibrant Performance Turbocharger Flange for Turbo Inlet Flange; 69.9mm Bhcch; 82.6mm Bhccw; M10x1.5 Bhts; 95mm Overall h; 108mm Overall w; 0.5 In. Thi
Brand: Vibrant Performance
SKU: 14420
Price: 41.5 USD
Availability: InStock

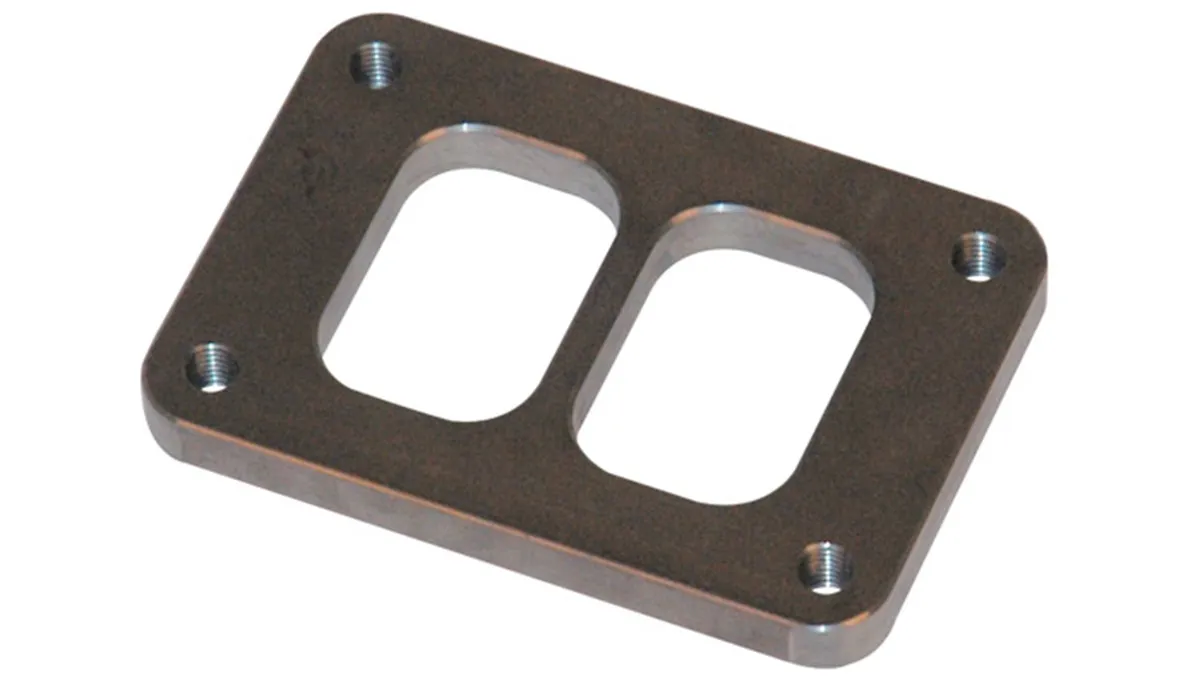

Vibrant Performance Turbocharger Flange for Turbo Inlet Flange; 69.9mm Bhcch; 82.6mm Bhccw; M10x1.5 Bhts; 95mm Overall h; 108mm Overall w; 0.5 In. Thickness; 50.3mm Port h; 34.5mm Port w; For T04 Divided Inlet; Mild Steel - Part #14420

In Stock

MPN: 14420UPC: 00690092180911

Almost gone! Only 1 remaining

$41.50$58.23SAVE 29%

6 Months

Mild Steel Turbo Inlet Flange for Garrett GT3788, GT4088R, GTX4088R, GT4094R, GT4202R, GT4294R, GT4508R, GTX4508R

Secure Checkout

SSL Encrypted

Easy Returns

30-day policy

Guaranteed Fitment

Or your money back

Pay Over Time

With Affirm

Usually ships in 1-3 business days

1018 Mild Steel,0.5 in. Thick To Prevent Warping,Bolt Pattern 3.375 in. x 2.75 in.,6 Month Limited Warranty,Drilled Holes

Overview

Mild Steel Turbo Inlet Flange for Garrett GT3788, GT4088R, GTX4088R, GT4094R, GT4202R, GT4294R, GT4508R, GTX4508R

Weight	1.535 lbs
Length	7.05 in
Width	6 in
Height	0.55 in
Part Number	14420
UPC	00690092180911
Billable Weight	1.5
Bolt Hole Center to Center Height	69.85 MM
Bolt Hole Center to Center Width	82.6 MM
Bolt Hole Thread Size	M10 x 1.5
Color	RGB
Country of Origin	TW
Dimensional Weight	1.5 PG
Emissions	Emissions Compliance Exempt
Hazardous Material	N
Height	0.51
Item Quantity/Size	1 EA
Length	7.01
Material	Mild Steel
Overall Height	95 MM
Overall Port Width	74.4 MM
Overall Width	108 MM
Port Height	50.3 MM
Port Width	34.5 MM
Qty Per Application	Normal Quantity Used in a Vehicle:1 Box
Sale Segment	Turbo Flanges and Fittings

Vibrant Performance Turbocharger Flange for Turbo Inlet Flange; 69.9mm Bhcch; 82.6mm Bhccw; M10x1.5 Bhts; 95mm Overall h; 108mm Overall w; 0.5 In. Thickness; 50.3mm Port h; 34.5mm Port w; For T04 Divided Inlet; Mild Steel - Part #14420
