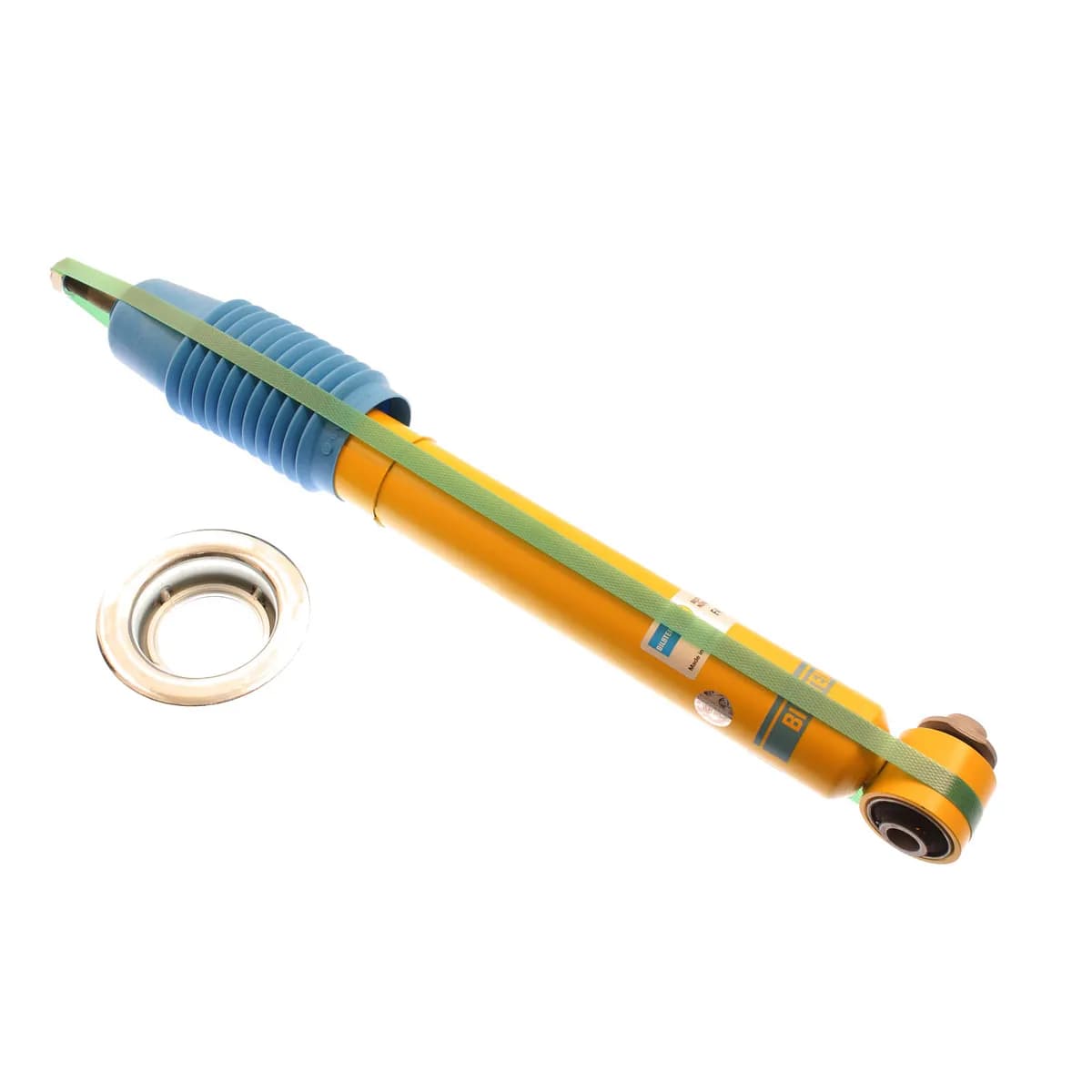

Rear BMW 525xi 2007-2006, 528i xDrive 2010-2009, 528xi 2008, 530xi 2007-2006, 535i xDrive 2010-2009, 535xi 2008 B6 (HD) Shock Absorber
1 / 2
Rear BMW 525xi 2007-2006, 528i xDrive 2010-2009, 528xi 2008, 530xi 2007-2006, 535i xDrive 2010-2009, 535xi 2008 B6 (HD) Shock Absorber
MPN: 24-141789UPC: 00651860591551Coming Soon
https://sdda.semadata.org/Standard/Thyssen Krupp Automotive Group/warranty_all_v4.2.pdf Installation GuideComing Soon
This product is not yet available for purchase. Stay tuned for updates!
Fits:525xi528i xDrive528xi530xi535i xDrive535xi Rear BMW 525xi 2007-2006, 528i xDrive 2010-2009, 528xi 2008, 530xi 2007-2006, 535i xDrive 2010-2009, 535xi 2008 B6 (HD) Shock Absorber
Rear BMW 525xi 2007-2006, 528i xDrive 2010-2009, 528xi 2008, 530xi 2007-2006, 535i xDrive 2010-2009, 535xi 2008 B6 (HD) Shock Absorber
Earn 199 Yittzy Rewards points with this purchase — 1 point per $1 spent. Join free Technical Specifications
| Weight | 6.1300 lbs |
| Length | 26.8000 in |
| Width | 3.5500 in |
| Height | 3.5500 in |
| Part Number | 24-141789 |
| UPC | 00651860591551 |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| Boot Included | Blue Bellows |
| Collapsed Length (IN) | 17.93 |
| Collapsed Length (mm) | 455.5 |
| Compressed Length | 17.93 IN |
| Country of Origin | DE |
| Emissions | Emissions Compliance Exempt |
| Extended Length | 572.0 MM |
| Extended Length (IN) | 22.52 |
| Extended Length (mm) | 572.0 |
| Finish | Yellow Paint |
| Grade Type | Performance |
| Height | 3.5500 |
| Height (in) | 3.55 |
| Installation Instructions | https://sdda.semadata.org/Standard/Thyssen Krupp Automotive Group/E4-WM5-Y132A01.pdf |
| Internal Design | Monotube |
| Item Quantity/Size | 1.0 EA |
Installation Overview
Common Tools: Floor jack, Jack stands, Socket set, Torque wrench, Spring compressor
