**price Only**03-08 Dodge RAM 2500/3500 4WD 4.5" Stage 5 Suspension System W Tubular Link Arms

ICON Vehicle Dynamics **price Only**03-08 Dodge RAM 2500/3500 4WD 4.5" Stage 5 Suspension System W Tubular Link Arms
1 / 2
Hover to zoom

**price Only**03-08 Dodge RAM 2500/3500 4WD 4.5" Stage 5 Suspension System W Tubular Link Arms

MPN: K214504TUPC: 00840103415567
In Stock
Almost gone! Only 1 remaining
$6,080.97$6,640.40SAVE 8%
Starting at $507/mowithaffirm
See Rep
Fits:Universal Fit

**price Only**03-08 Dodge RAM 2500/3500 4WD 4.5" Stage 5 Suspension System w Tubular Link Arms

1

Secure Checkout

SSL Encrypted

Easy Returns

30-day policy

Guaranteed Fitment

Or your money back

Pay Over Time

With Affirm

Freight Shipping โ€” quoted at checkout

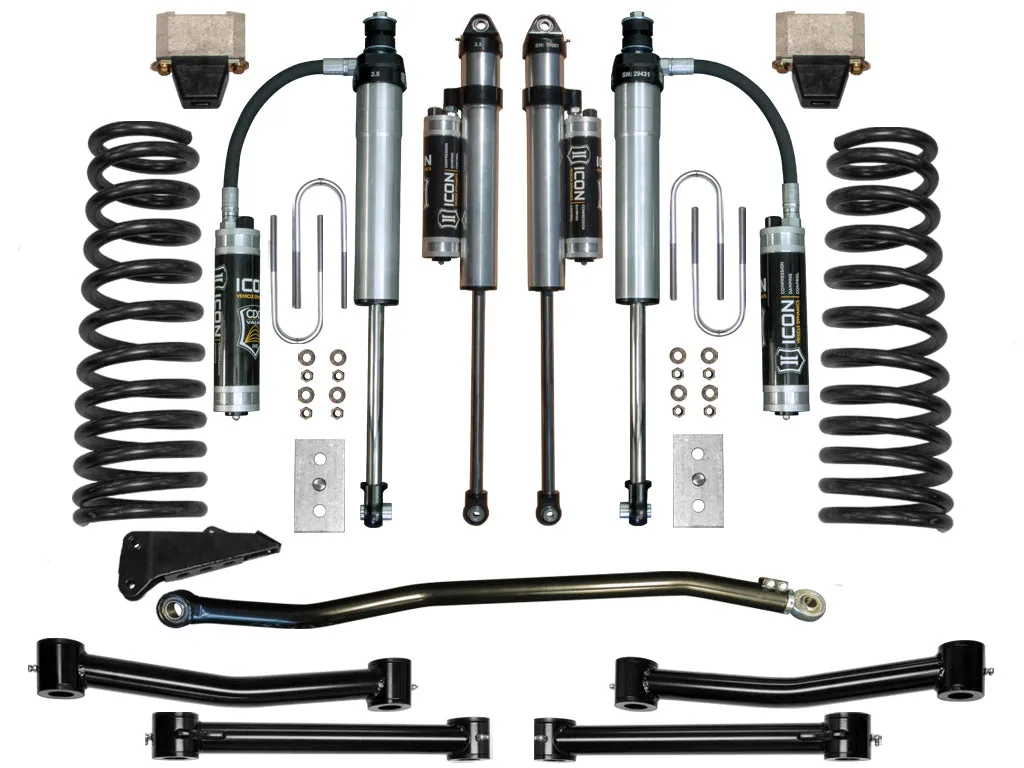

2003-2008 Ram 2500/3500 4.5" Stage 5 Suspension System utilizes the same technology as the 2.5" systems while adding lift height, ground clearance, and user adjustability. Additional engineered front-end components are added to ensure proper steering geometry with improved function throughout the entire travel range whether on or off road. The Stage 5 System is comprised of dual rate coil springs, tubular steel upper & lower link arms, polyurethane bump stops w/ billet extension, sway bar drop brackets, forged pitman arm, track bar drop bracket, 2.5 Aluminum Series shocks w/ CDCV, bearing style adjustable track bar, and rear 2.5" lift blocks. ICON 2.5 Aluminum Series shocks extend the performance of the kit by increasing the duration of consistent damping regardless of situation, and give you the ability to tune the compression damping with the turn of an external knob. These shocks include FK bearings, one-piece impact extruded aluminum cylinders, and 7/8" shafts for strength. The adjustable track bar with bearings not only improves rigidity over flexible factory joints, but offers adjustability to center the front axle under the truck. ICON steel upper & lower links increase performance, strength, and range of alignment. These link arms decrease the bind found in the factory link bushings. This ultimate performance system with link arms offers extraordinary diversity across any terrain, all while keeping a smooth highway feel. Installing this kit allows proper clearance for 35" tall tires with no modifications, and some 37" tires with minor fender well trimming for clearance. With the endless hours ICON has spent testing and tuning our suspension components and shocks together, you can rest assured you have the best suspension solution on the market.

Overview

**price Only**03-08 Dodge RAM 2500/3500 4WD 4.5" Stage 5 Suspension System w Tubular Link Arms

Earn 6080 Yittzy Rewards points with this purchase โ€” 1 point per $1 spent. Join free

Installation Overview

Difficulty
๐Ÿ”ง๐Ÿ”ง๐Ÿ”ง๐Ÿ”งโšช
Advanced
Est. Time
4-12 hrs
Skill Level
Advanced
Pro Install
Recommended
Common Tools: Floor jack, Jack stands, Socket set, Torque wrench, Spring compressor
Read our Lift Kit Guide โ†’
