Let’s face it, G body cars are cool and getting more popular by the day. The common problem with all of them is they don’t handle very well. You can now fix the problem with one of Unisteer’s bolt on rack and pinion kits. The G-body kit is a front steer rack and is bolted to a one-piece bracket that mounts to the inside of your frame rails. It utilizes the same bolt holes that your steering box and idler arm were attached to. The kit was designed to match the stock pivot points on the vehicle which will not only make it handle well, but also reduce bump steer. The pump with mounting bracket for small block applications, the u-joints, steering shafts and sway bar link kits are all there to get it done quickly and easily. This unit has fit with Hooker Competition, and Super Competition headers.

Note:
On some aftermarket engine blocks, the deck height may be raised by up to 0.4". This may affect your exhaust header location.

Note:
Some aftermarket cylinder heads may have a raised exhaust floor, anywhere from 0.25"-0.4" which may also affect your header locations.

Click to view instruction sheet Tech Info:

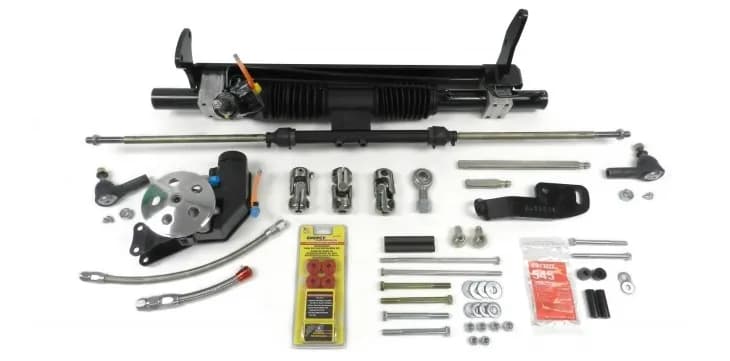

Pinion Type/Size: 3/4"-36 Spline Amount of Travel: 7" Turns Lock to Lock: 3 Turns Pressure Port Size: 18mm - 6AN Banjo Return Port Size: 16mm - 6AN Banjo Pump Required: High Flow/Pressure Inner End Threads: M14 x 1.5 Outer ends: 8020940 Kit Includes: Rack and Pinion Mounting Bracket Mounting Hardware Outer Tie Rod Ends Pump and Line Kit Steering Shaft Kit
