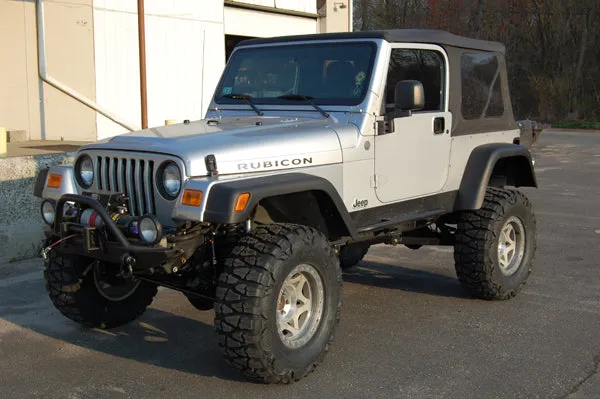

Clayton Off Road Pro Series Rear Long Arm Kit w/5" Stretch for 1997-2006 Jeep TJ
Rear-half Pro Series 3-link long arm suspension upgrade with 5-inch stretch for 1997-2006 Jeep Wrangler TJ models.
Secure Checkout
SSL Encrypted
Easy Returns
30-day policy
Guaranteed Fitment
Or your money back
Pay Over Time
With Affirm

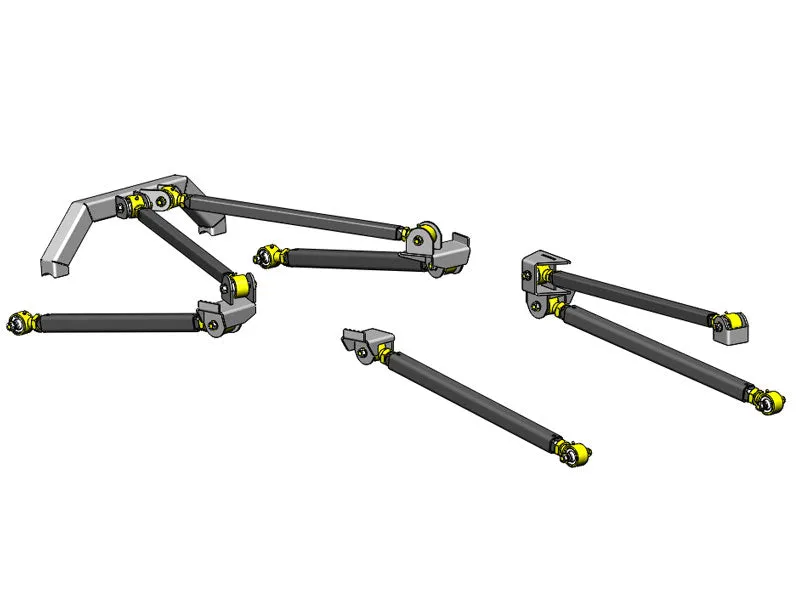

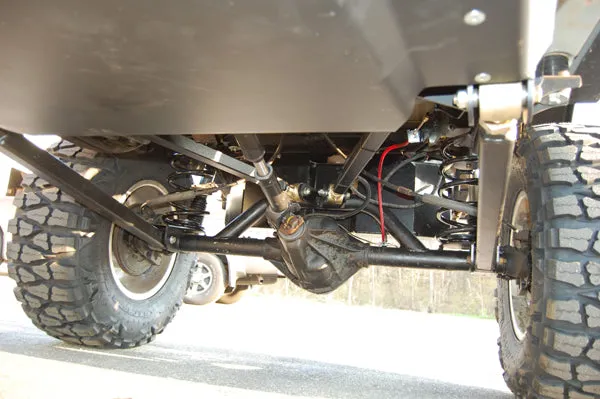

The Clayton Off Road Pro Series Rear Long Arm Upgrade Kit is a rear-half 3-link suspension system engineered for 1997-2006 Jeep Wrangler TJ owners who demand serious articulation and durability on the trail. This kit replaces the factory rear suspension geometry with a high-flex, adjustable design built around a 5-inch wheelbase stretch.

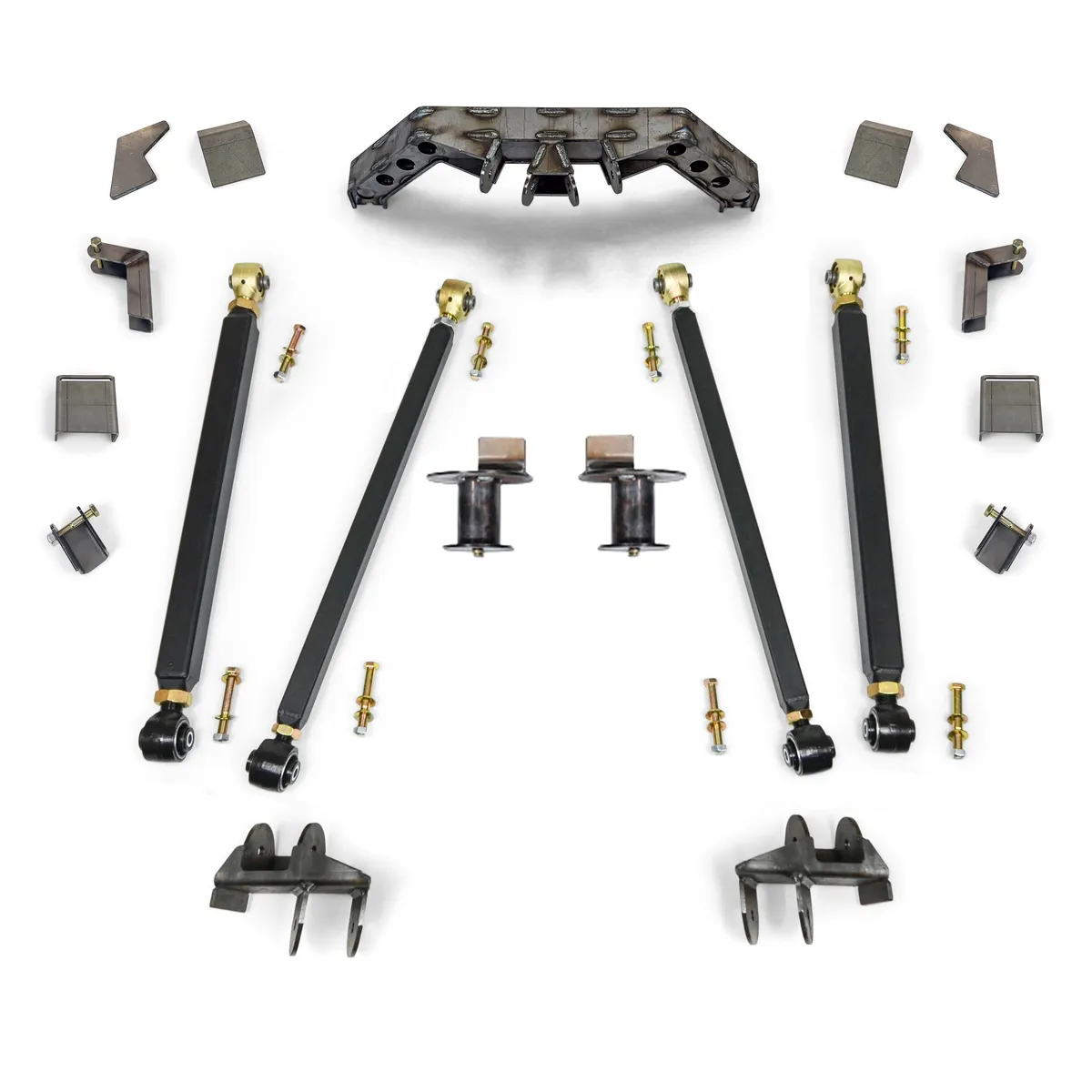

What's Included:
- Rear Frame Brackets

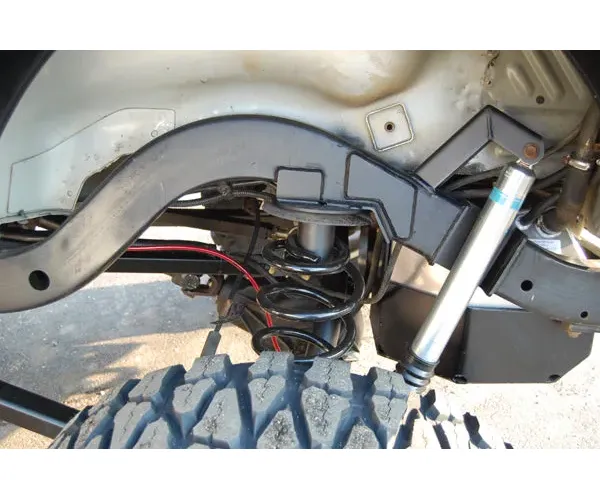

- Double Adjustable Control Arms
- 4-Link Axle Truss
- Hardware
Key Components:
- Currie Johnny Joints: Installed at the frame ends with 40 degrees of unrestricted movement, using shock-absorbing Tough 88 urethane casing that outperforms traditional heim joints
- Giiro Bushings: Maintenance-free, dual-durometer bushings at the axle ends for a smooth, controlled ride

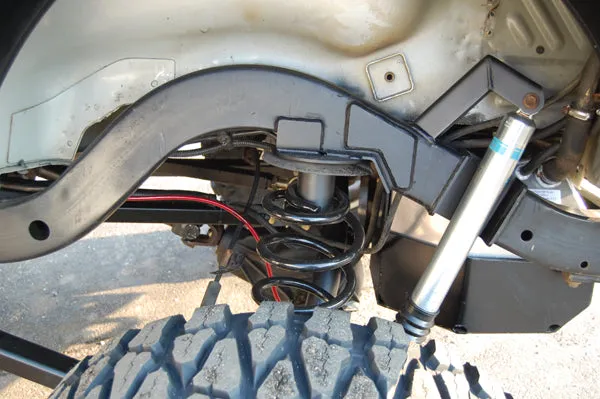

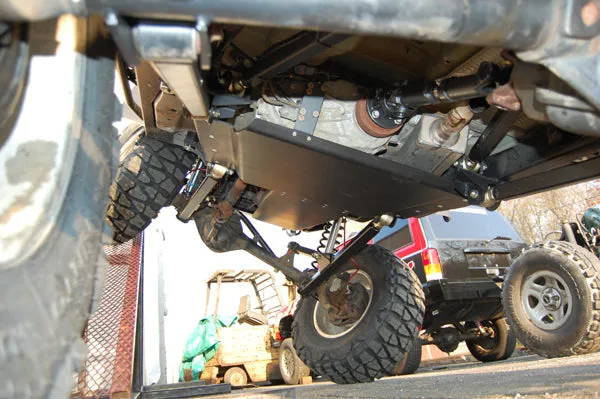

- Heavy-Duty Weld-On Brackets and Crossmember: Reinforced construction for long-term durability under extreme use
- Lifetime-Guaranteed Control Arms
The double adjustable control arms allow precise fine-tuning of pinion angle and suspension geometry, reducing stress on driveline and suspension components while improving ride quality both on and off-road.
Important Installation Notes: Welding is required to install this kit, and a custom exhaust will be necessary. A front CV-style driveshaft and SYE (slip yoke eliminator) kit are also required. Clayton's front D30 truss is highly recommended, and aftermarket axle owners will need to source a compatible truss.

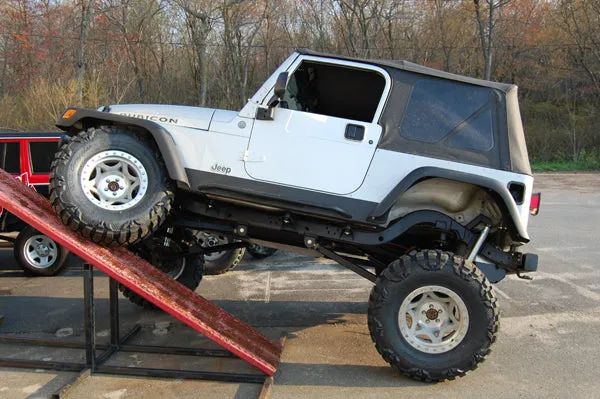

This rear long arm system is intended for hardcore builders seeking maximum flex and a durable, adjustable rear suspension foundation for their TJ.
