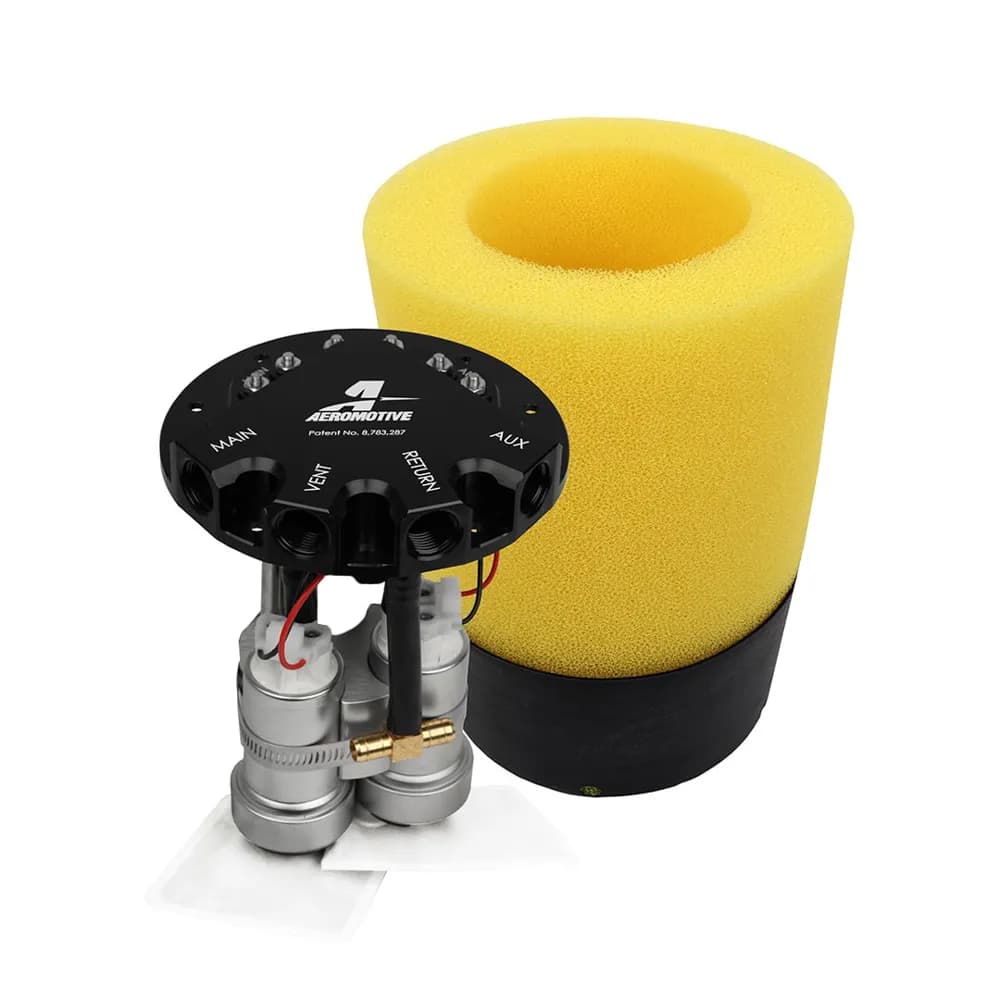

Fuel Pump, Universal, Phantom, 450, Dual, 6-10" Depth

NEW RETURNLESS STYLE KIT OPTION: Introducing the New Aeromotive Returnless Phantom Fuel System Kits. Engineered Specifically for use with the Vaporworx Fuel Pump Controllers. Utilizing the Vaporworx controller, we are able to completely eliminate the need for a fuel pressure regulator and return line. The Vaporworx fuel pump controller instantly varies the speed of the fuel pumps based on demand with use of a simple MAP sensor, creating an OEM+ style system, like all late model cars. This reduces the amount of heat introduced by the pump, creates quieter operation and improves overall efficiency.

Please note:
Requires the use of VaporWorx Fuel Pump Controller to run Returnless Style (#66138). Kit does not include fuel pump controller, but does include an additional 85psi in-tank overpressure fail safe valve.

Features and Specifications:
(2) 450 LPH Stealth Fuel Pumps Gasoline and E85 Compatible Supports Gas flywheel HP up to: 1600 HP EFI
– Forced Induction 2,200 HP EFI
– Naturally Aspirated 1900 HP Carbureted
– Forced Induction 2600 HP Carbureted
– Naturally Aspirated Supports E85 flywheel HP up to: 1,100 HP EFI
– Forced Induction 1,500 HP EFI
– Naturally Aspirated 1,400 HP Carbureted
– Forced Induction 1,800 HP Carbureted
– Naturally Aspirated Black anodized top hat (4) ORB-08 Ports 2x Supply, (1) Return, (1) Vent Larger Capacity fuel resistant baffle/basket (Includes: Foam and Bladder) (2) Universal high flow pre-pump filters Modular design can be cut to height to fit 7-11″ Deep Tanks EFI or Carbureted Turbine pump mechanisms increase durability Must be used with a return style system (or returnless with the Returnless Style Kit option). If you run the Returnless Style Kit, you must also purchase the VaporWorx #66138 Fuel Pump Controller separately. In-tank use only This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
