sūsa HyperFlow Sandwich Adapter w/ Thermostat, 180ºF
Oil Filter Adapter - Sandwich - HyperFlow - 22 mm x 1.50 Filter Thread - 12 AN Male Inlet - 12 AN Male Outlet - Aluminum - Clear Anodized - Each
Secure Checkout
SSL Encrypted
Easy Returns
30-day policy
Guaranteed Fitment
Or your money back
Pay Over Time
With Affirm
- INSTRUCTIONS
- Built to perform from street to track, the sÅ«sa HyperFlow Billet Sandwich Adapter provides easy oil access for performance oil cooling. sÅ«sa's unique self-contained thermostatic oil valve with pressure-relief function provides automatic oil by-pass to minimize warmup time and offer convenience in any setting. The 180ºF Thermostatic Oil Valve (TOV) allows up to 100% oil by-pass before actuation. This sandwich-style oil filter adapter is engineered for the high-flow environment of a high-performance wet sump oiling system, easily adapting to –6, –8, –10 and -12 when used with sÅ«sa ProLine M22 adapter fittings or direct-port hose ends (sold separately). (shown with adapter fittings, sold separately) Notes: sÅ«sa HyperFlow Sandwich Adapters do not work with -16 AN adapters. It is not necessary or recommended to use these larger size lines on the pressure side of a wet-sump oiling circuit utilizing an intermediate size spin-on oil filter. This item is not designed to nor does it work with banjo adapters fittings. Do not block off or plug the inlet/outlet M22x1.5 ports on a sandwich adapter when installed. This will cause blockage of oil flow and could result in catastrophic engine failure. If installing and not immediately plumbing an oil cooler, you must loop hoses from outlet to inlet to ensure an unobstructed flow path. Included (x1)

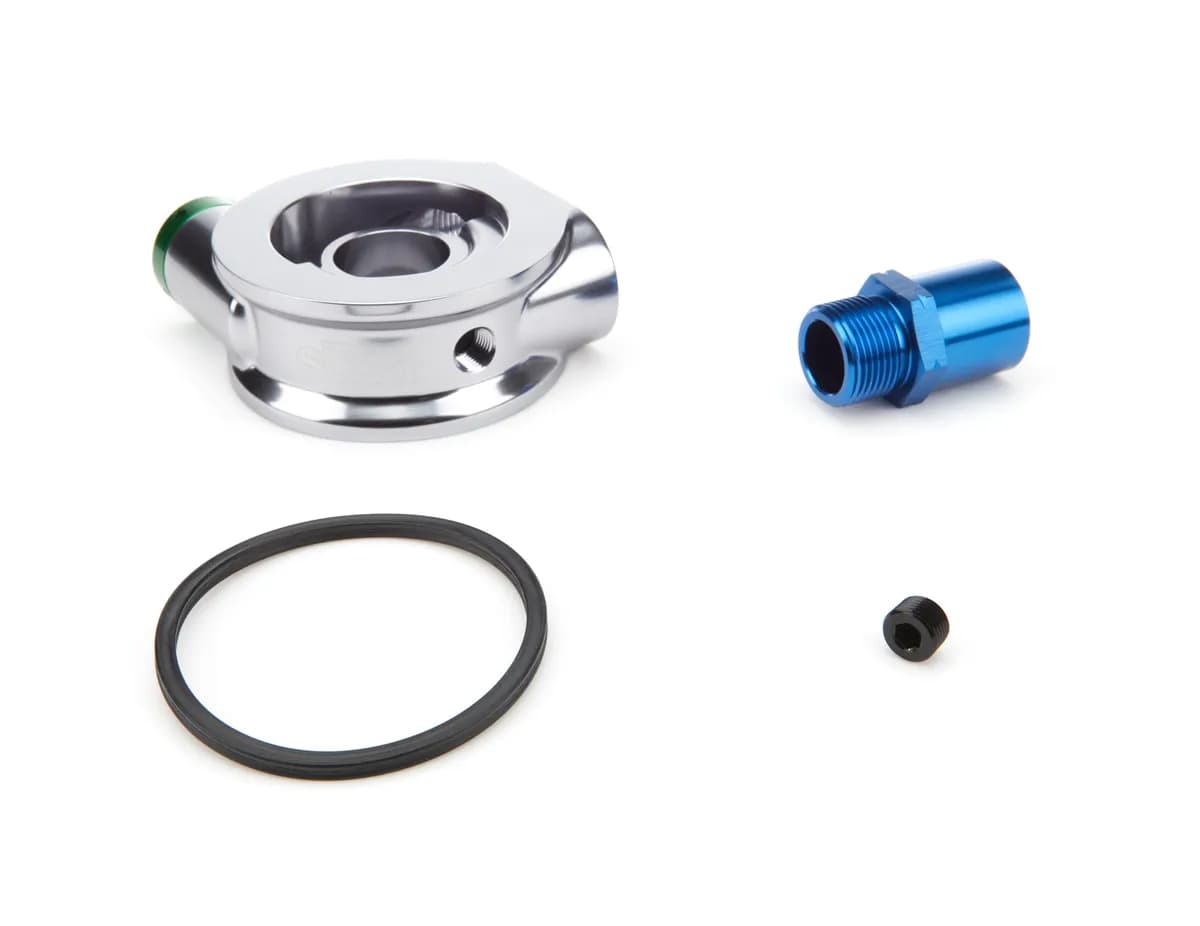

- HyperFlow Sandwich Adapter w/ Thermostat (x1) - 1/8" NPT Port Plug (x1)
- Filter Extension Screw (thread pitch dependent) (x1)
- Buna X-Profile O-ring (fittings sold separately) Fitment Fitment specifications coming soon... Offered in 3 common filter thread pitch applications: Thread Pitch: M20 x 1.5 ----- P/N: 19-SPTB76-20-22 Thread Pitch: M22 x 1.5 ----- P/N: 19-SPTB76-22-22 Thread Pitch: 3/4"-16 ------- P/N: 19-SPTB76-34-22 Specifications Thermostatic Oil Valve: 180°F Actuation Inlet/Outlet Ports: M22 ProLine (22mm x 1.5 female thread) Accessory Port: 1/8" NPT Max Torque for M22 ProLine fitting installation: 29.5 ft/lbs Torque for Sandwich Adapter to filter landing: 21-25 ft/lbs Torque for NPT port plug: 2-3 turns from finger tight Material: Aluminum Finish: Anodized Gray Working Temp: -40 to 150 °C General Dimensional Tolerance: ISO 2768-v Fluid Compatibility: Oil O-ring: Buna x-profile, -229 size Dimensions
