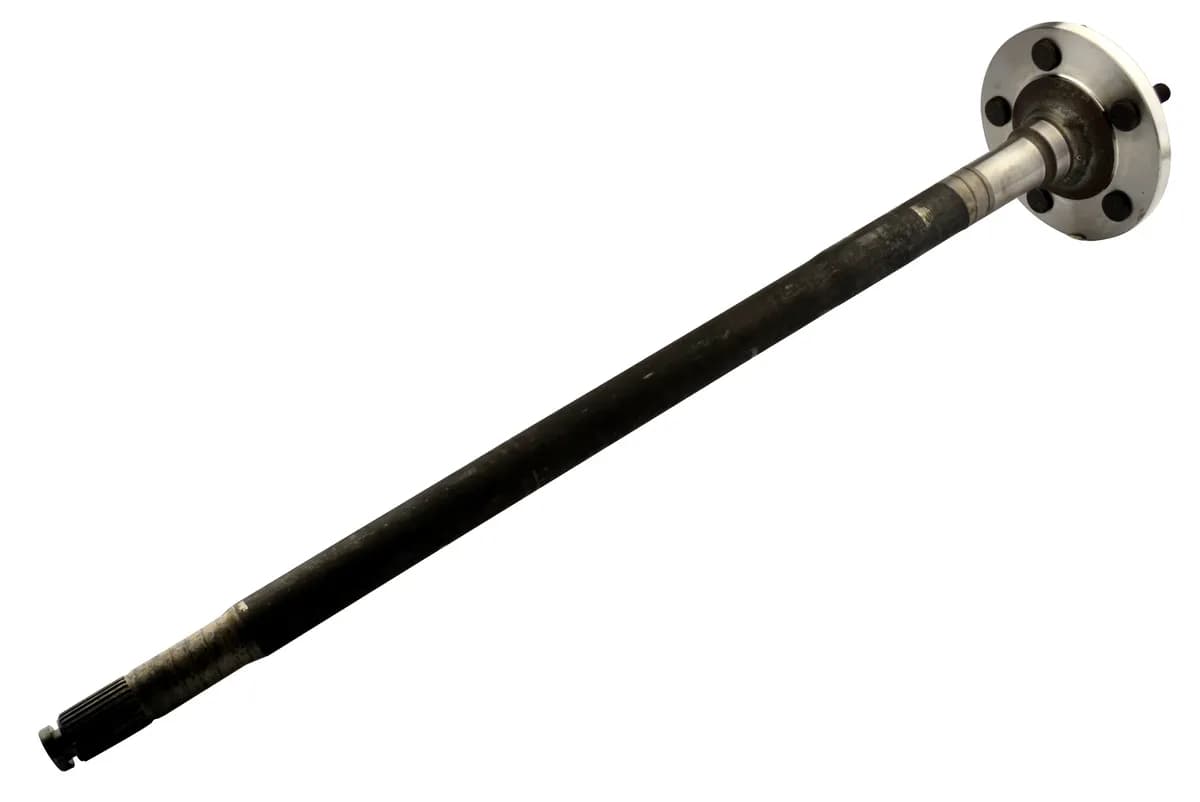

Axle Shaft Assy 90-02 Pass W/O ABS
1 / 2
Axle Shaft Assy 90-02 Pass W/O ABS
MPN: 73624-1XUPC: 00023913133702In Stock
Almost gone! Only 1 remaining $186.71$247.50SAVE 25%
Starting at $16/mowithaffirm
Axle Shaft Assy 90-02 Pass W/O ABS
Freight Shipping — quoted at checkout AXLE SHAFT ASSY 90-02 PASS W/O ABS
Earn 186 Yittzy Rewards points with this purchase — 1 point per $1 spent. Join free Technical Specifications
| Weight | 177.0000 lbs |
| Length | 31.6000 in |
| Width | 8.0000 in |
| Height | 8.1000 in |
| Part Number | 73624-1X |
| UPC | 00023913133702 |
| ABS Sensor Ring Included | No |
| ABS Sensor Ring Installed | N |
| ABS/Non-ABS | Non-ABS |
| Additional Handling Charge | Yes |
| Axle Cover Bolt Hole Qty | 10 |
| Axle Length (In) | 29.730 IN |
| Axle Length (Mm) | 755.142 MM |
| Axle Model | DANA 35 |
| Axle Shaft Included | Y |
| Axle Spline Count | 27 Inboard |
| Axle Type | Complete Assembly |
| Bearing Included | N |
| Bearing Pilot Diameter (In) | 1.390 IN |
| Bolt Pattern | 5 X 4.50 |
| Brake Pilot Diameter (In) | 2.810 IN |
| Country of Origin | US |
| Cover Bolt Quantity | 10 |
| Emissions | CARB Eligible |
| Full-Floating Or Semi-Floating | Semi-Floating |
| Height | 8.1000 |
Installation Overview
Common Tools: Specialized gear tools, Dial indicator, Torque wrench, Press
