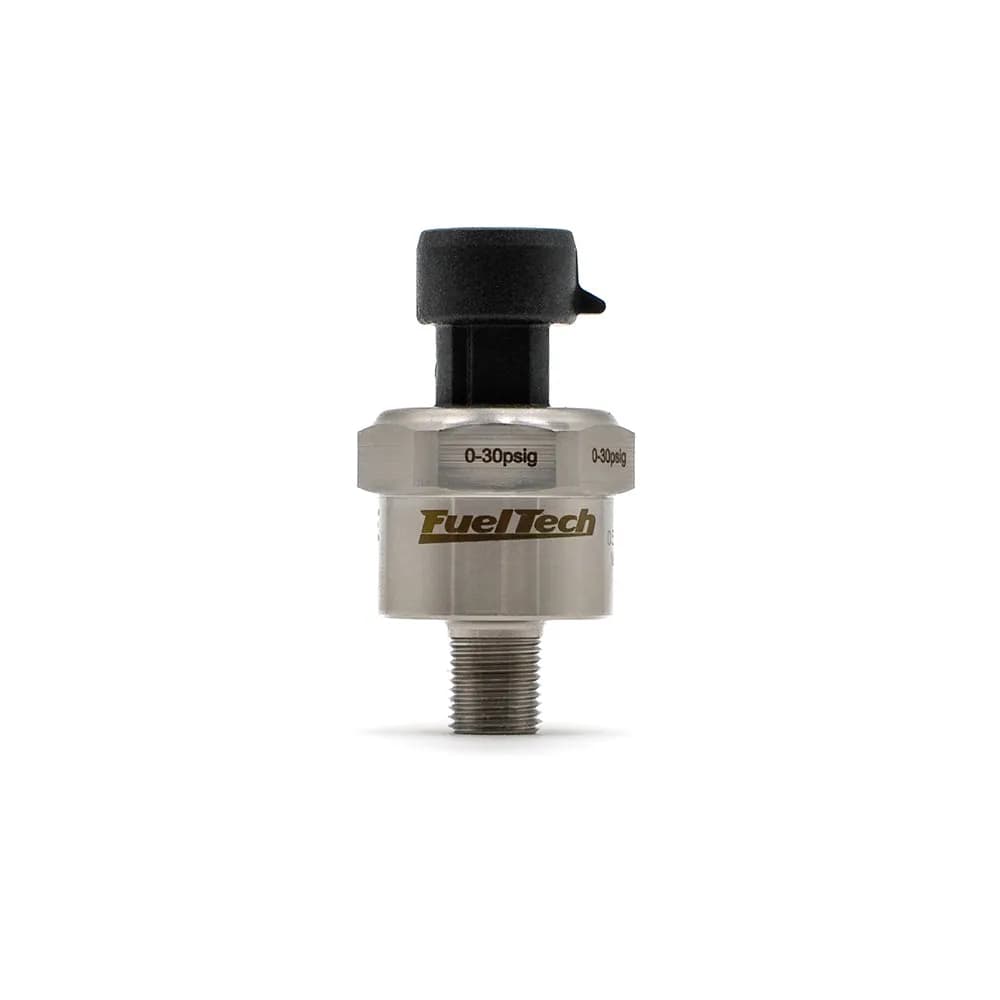

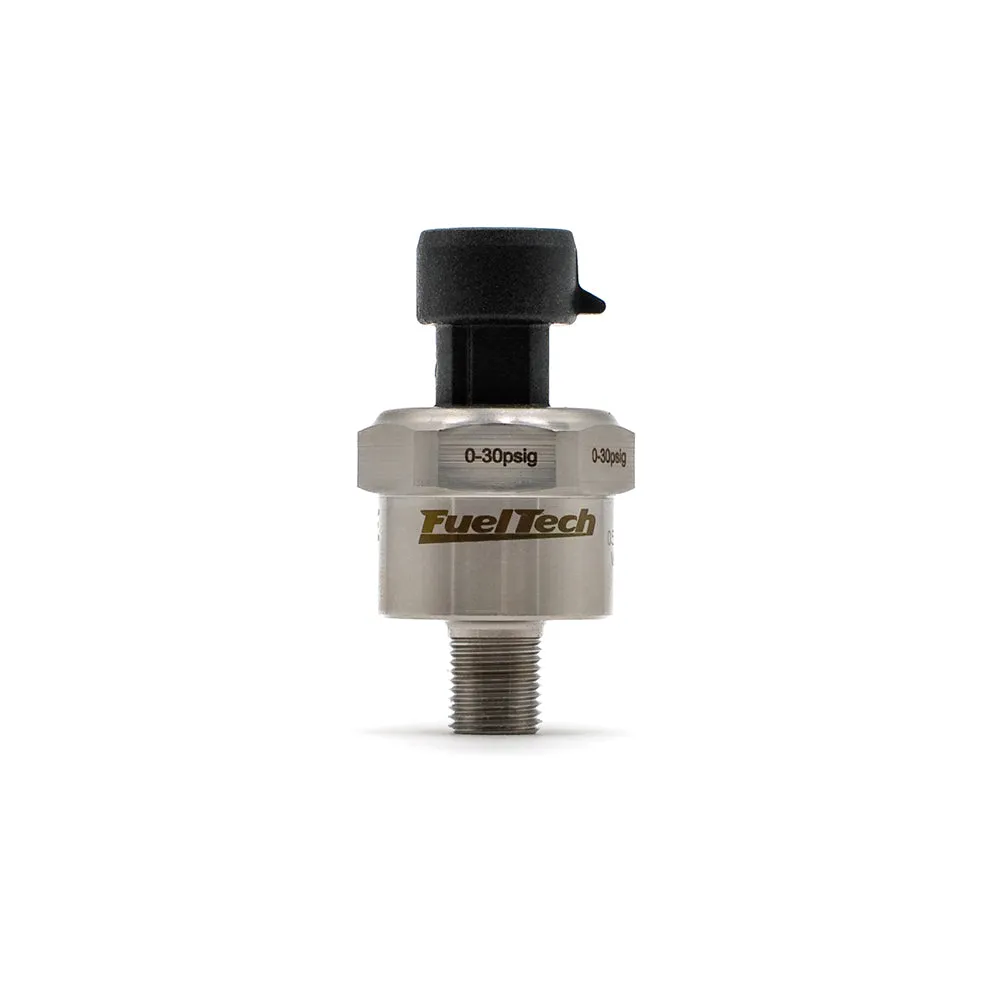

0-30psi Pressure Sensor Short Body
Pressure Sending Unit - 1/8 in NPT Male Thread - 0-30 PSI - Stainless - Each
Secure Checkout
SSL Encrypted
Easy Returns
30-day policy
Guaranteed Fitment
Or your money back
Pay Over Time
With Affirm

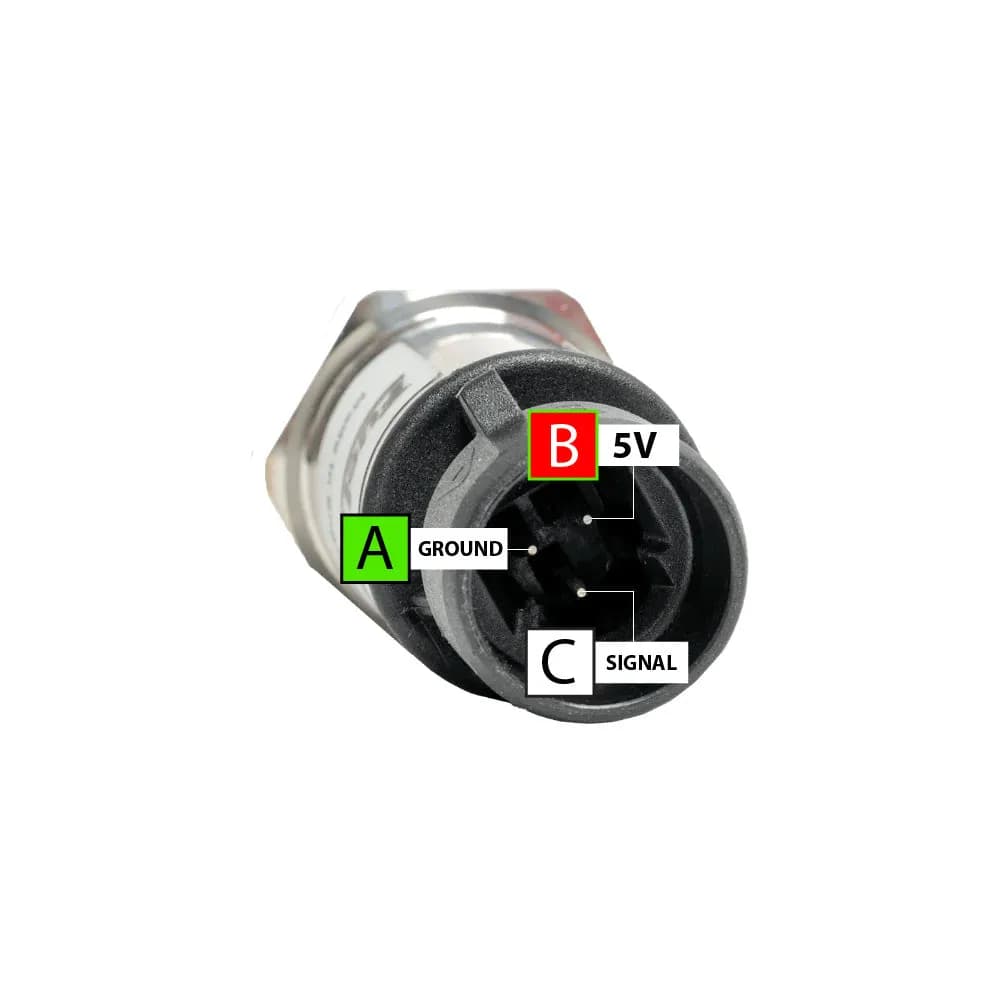

TECHNICAL DESCRIPTION Output: 0.5-4.5V Supply: 5V Thread size: 1/8" NPT Height: 45.5 mm (52.8 mm for 0-30 PSI) Hex Diameter: 27 mm Material: Stainless steel Ranges: PS30, PS150, PS300, PS500, PS1500 Connector Pinout: A
- Ground B - 5V C
- Signal SPECS Accuracy: ±1.0% span Stability: ≤ ±0.25% of span/year Compensated Temp: -58°F to +257°F (-40°C to +125°C) Operating Temp: -40°F to +257°F (-40°C to +125°C) Zero Tolerance: 0.5% of span Span Tolerance: 0.5% of span Response Time: < 5ms Warm-up Time: < 20ms Fatigue Life: 50M Cycles Wetted Parts: 17-4 PH Stainless Steel Enclosure: IP67 (IP65 for electrical code G) Vibration: Random vibration (20 g) RMS; 20-2000 hz per IEC 60068-64 Shock: 100 gs, 6ms Approvals: CE, conforms to European Pressure Directive, Fully RoHS compliant, UL recognized files #E219842 & E174228
Overview
Pressure Sending Unit - 1/8 in NPT Male Thread - 0-30 PSI
- Stainless
- Each
