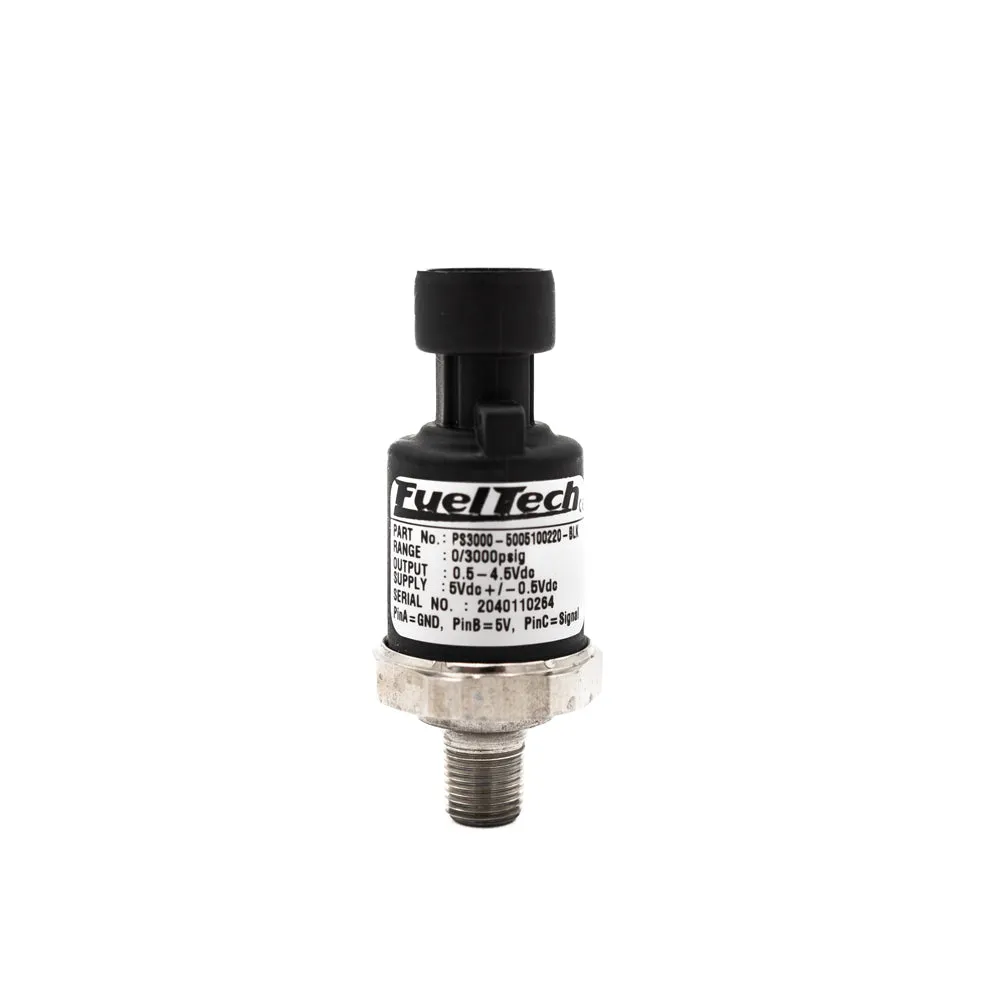

0-3000 PSI Pressure Sensor (Black Series)
Pressure Sending Unit - Black Series - 1/8 in NPT Male Thread - 0-3000 psi - Wheelie Bar Load Cell - steel - Black / Stainless - Each
Secure Checkout
SSL Encrypted
Easy Returns
30-day policy
Guaranteed Fitment
Or your money back
Pay Over Time
With Affirm
FuelTech's Pressure Sensors provide accurate and reliable pressure readings in high-performance automotive applications such as racing. Engineered for precision and durability, these sensors deliver real-time data essential for optimizing engine performance and ensuring safe operation. Whether used for monitoring fuel, oil, or boost pressure, these sensors provide invaluable insights to enthusiasts and professionals alike, making them an indispensable component in any performance-driven setup.
TECHNICAL DESCRIPTION Output:
0.5-4.5V Supply: 5V Thread size: 1/8" NPT Connector Pinout: A
- Ground B - 5V C
- Signal SPECS Performance Long Term Drift: 0.2% FS/YR (non-cumulative) Accuracy: 0.25% FS Thermal Error: 0.83% FS/100°F (1.5% FS/100°C) Compensated Temp: -40°F to +257°F (-40°C to +125°C) Operating Temp: -40°F to +257°F (-40°C to +125°C) Zero Tolerance: 0.5% of span Span Tolerance: 0.5% of span Response Time: 1ms Fatigue Life: 1M Cycles Wetted Parts: 17-4 PH Stainless Steel Enclosure: IP67 (IP65 for electrical code G) Vibration: 40G peak to peak sinusoidal, (Random Vibration 20 to 1000hz @ approx 40G peak per MIL-STD-810E) Shock: Withstands free fall to IEC 68-2-32 procedure 1 EMC (Radiated Immunity): 100V/m Approvals: CE, conforms to European Pressure Directive, Fully RoHS compliant, UL recognized files #E219842 & E174228 Weight: 35 Grams
Overview
Pressure Sending Unit
- Black Series - 1/8 in NPT Male Thread - 0-3000 psi
- Wheelie Bar Load Cell - steel
- Black / Stainless
- Each
