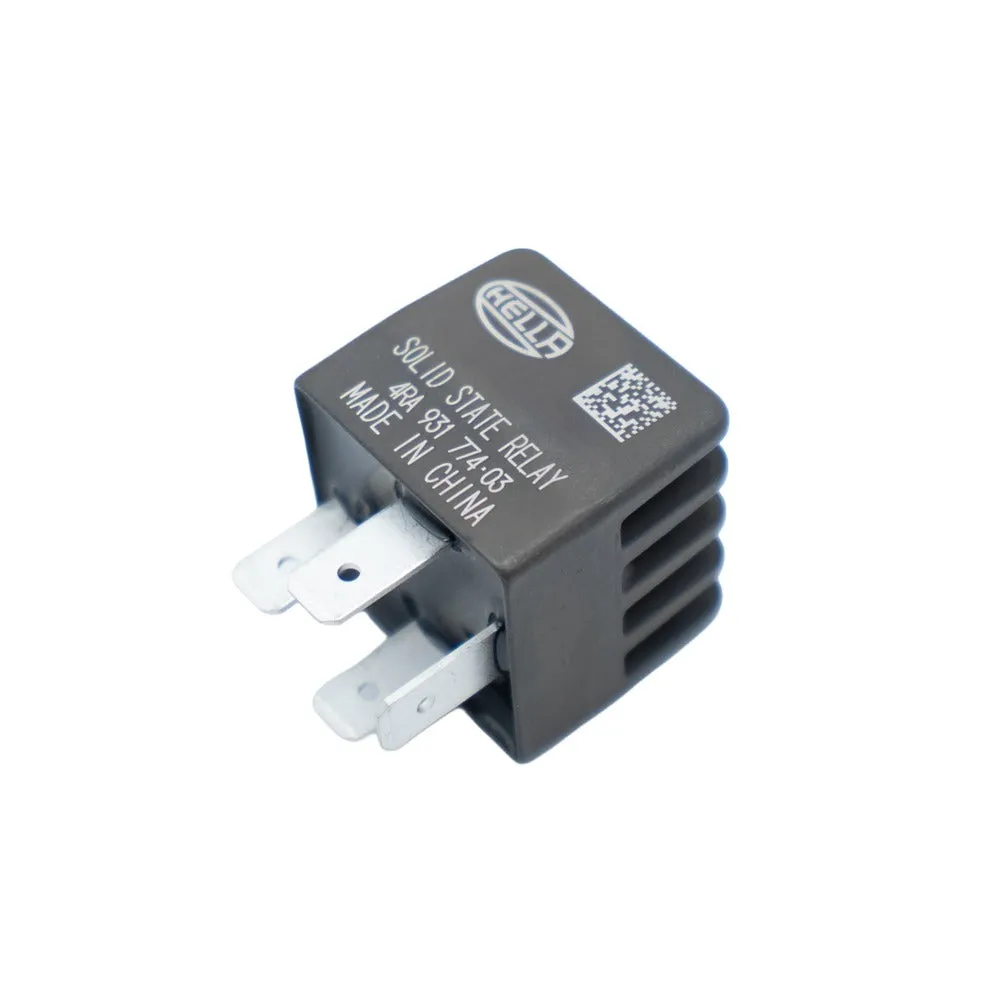

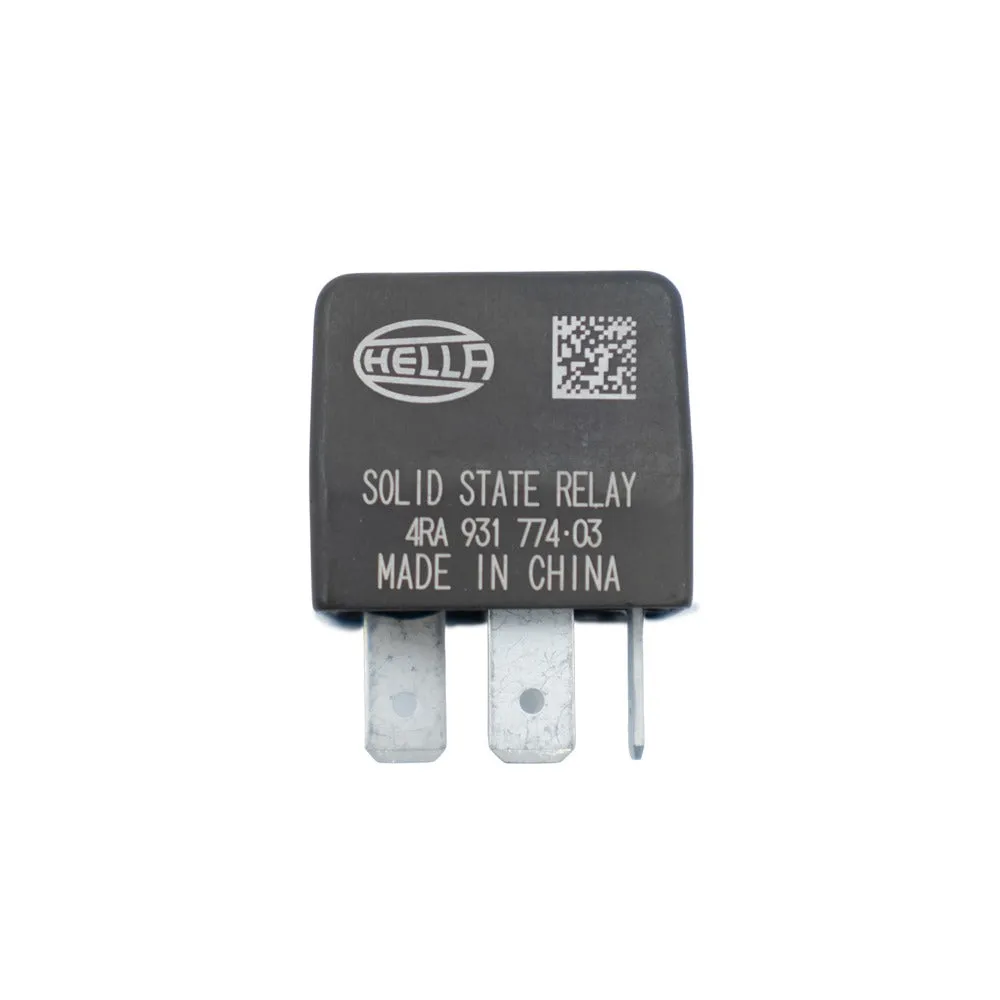

Staging / Brake Control Solid State Relay
Coming Soon
This product is not yet available for purchase. Stay tuned for updates!
Relay - Solid State - 20 amps - 12V - Staging / Brake Control - Each
Secure Checkout
SSL Encrypted
Easy Returns
30-day policy
Guaranteed Fitment
Or your money back
Pay Over Time
With Affirm
Downloads Staging / Brake Control Relay Diagram Features This relay can be used for the following: FT600 / FT550 / FT500 / FT500LITE / FT450 built-in Staging Control FT600 / FT550 / FT500 / FT500LITE / FT450 built-in Brake Control Fast switching speed which is perfect for PWM control and for use as a normal relay. No mechanical parts inside. Silent operation. 12V Solid State Relay Max Current: 20A PWM frequency: 0-1000Hz Dimensions (L x W x H): 27mm x 27mm x 26mm (1.07in x 1.07in x 1.02in) Weight: 30g Electrical Connections: 30
- Switched 12V
- Use fuse 85
- Not connected 86
- Trigger
- FT auxiliary output (activated when switched to ground) 87
- Output for load
- Normally Open contact - 20A:
