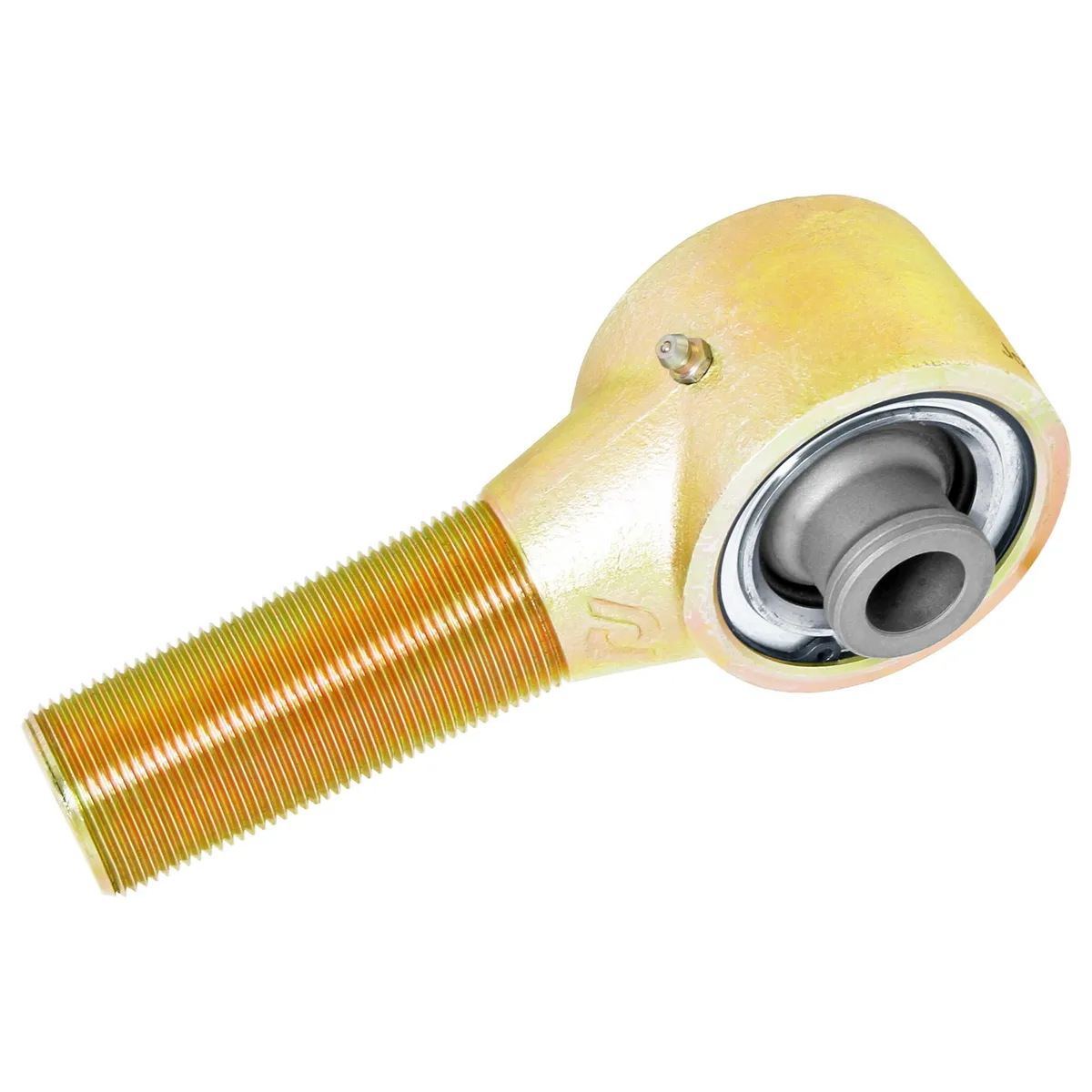

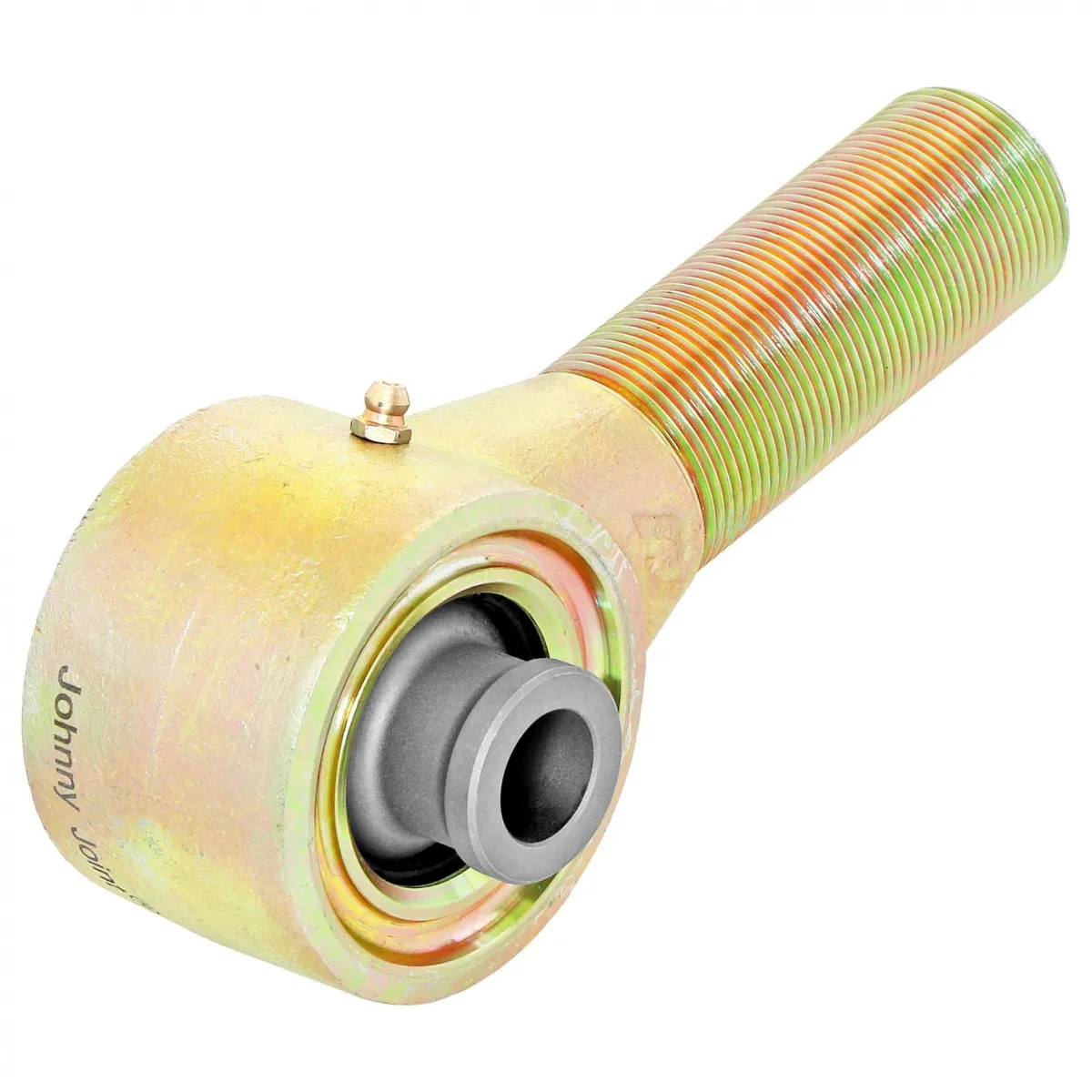

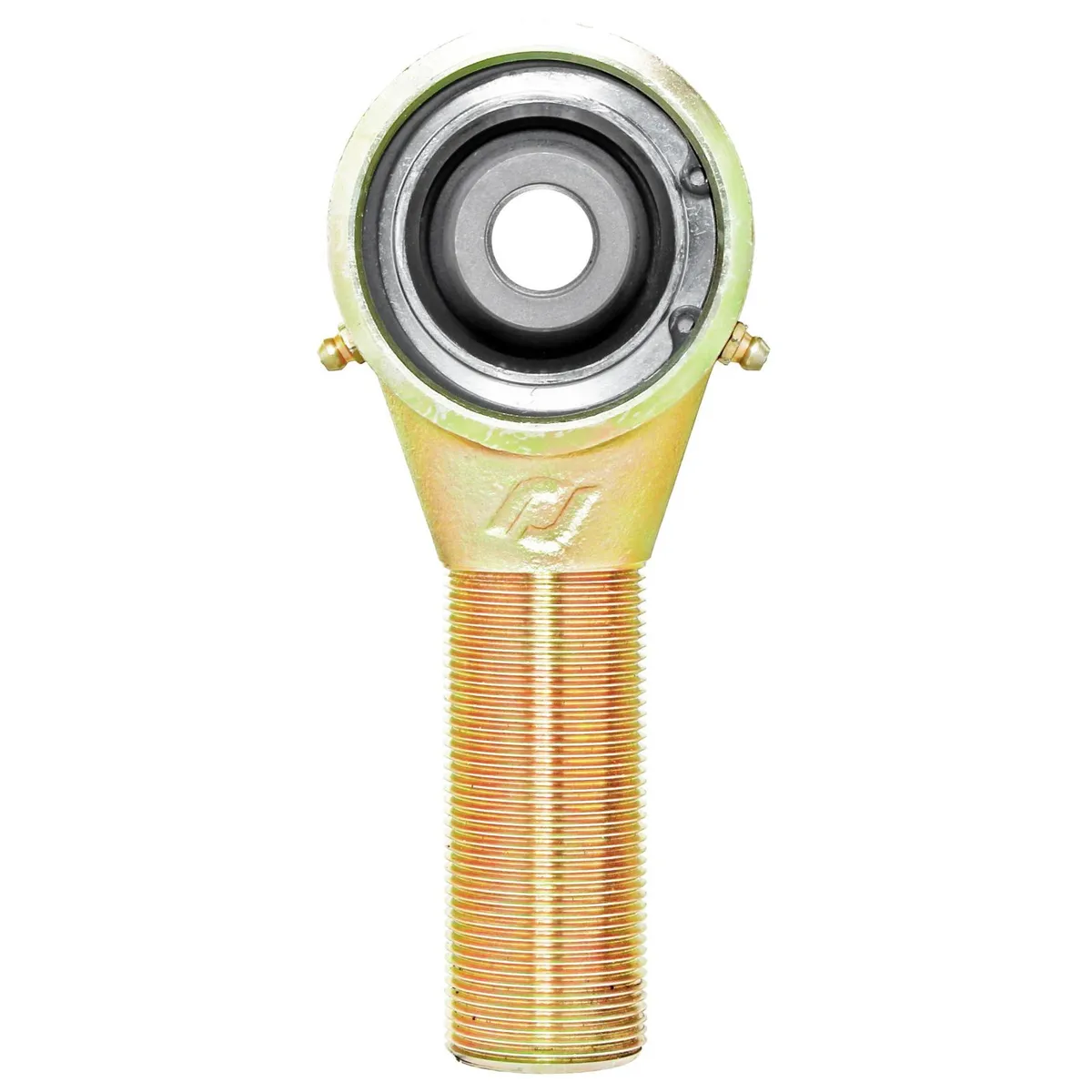

RockJock's narrow forged Johnny Joints for fabricators and suspension system builders offer up to 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint features a narrow 3 inch diameter joint body, fitted with a zerk fitting for greasing, 3.67 inch of 1 1/2 inch-12 left hand threads on the shank, and a 3.250 inch mounting width ball with a .750 thru bolt hole.

Finished in gold zinc plating. Kit Fits:
Universal Application Kit Includes: (1) Forged Johnny Joint Assembly Rod End Specs: Capable of 35 degree of overall articulation travel Forged 4140 chromoly construction 3 in. o.d. narrow body Measures 6 in. from CL of the joint to the end of the tip of the threads 3.670 in. of 1 1/2 in.-12 LH threads Features our CE-91112 center pivot ball (3.250 in. x .750 in.) Notes: This joint is capable of 35 degrees of overall articulation travel Johnny Joints require non-synthetic, hi-moly lube grease such as our CE-9013G Applicable Johnny Joint Tool for these Control Arms: CE-9111T Parts List: Johnny Joint Forging: RJ-365500-1 Center Pivot Ball: CE-91112 Bushing (one piece): CE-91113S Machined Side Washer: RJ-533001-1 Snap Ring: CE-91115 Zerk Fitting: CE-1103K21
