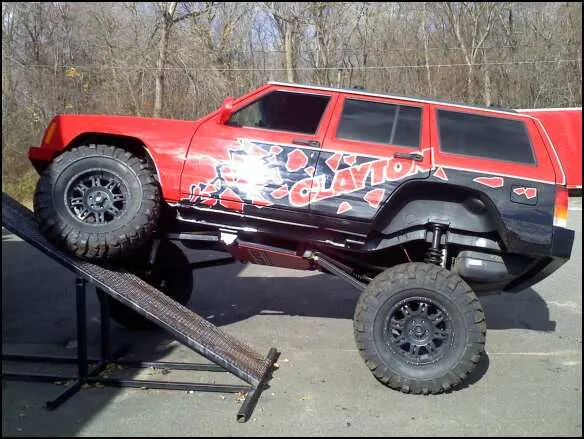

Clayton Off Road 3 Link Long Arm Lift Kit w/Rear Coil for Jeep Cherokee XJ

The Clayton Off Road Pro Series 8.0 Inch 3 Link Long Arm Lift Kit with rear coil conversion is engineered for 1984-2001 Jeep Cherokee XJ owners who want maximum articulation and true long arm geometry front and rear. This kit converts the XJ's front to a 3 link and the rear to a 4 link coil setup, replacing the factory leaf spring architecture with a fully adjustable, high-clearance suspension system.

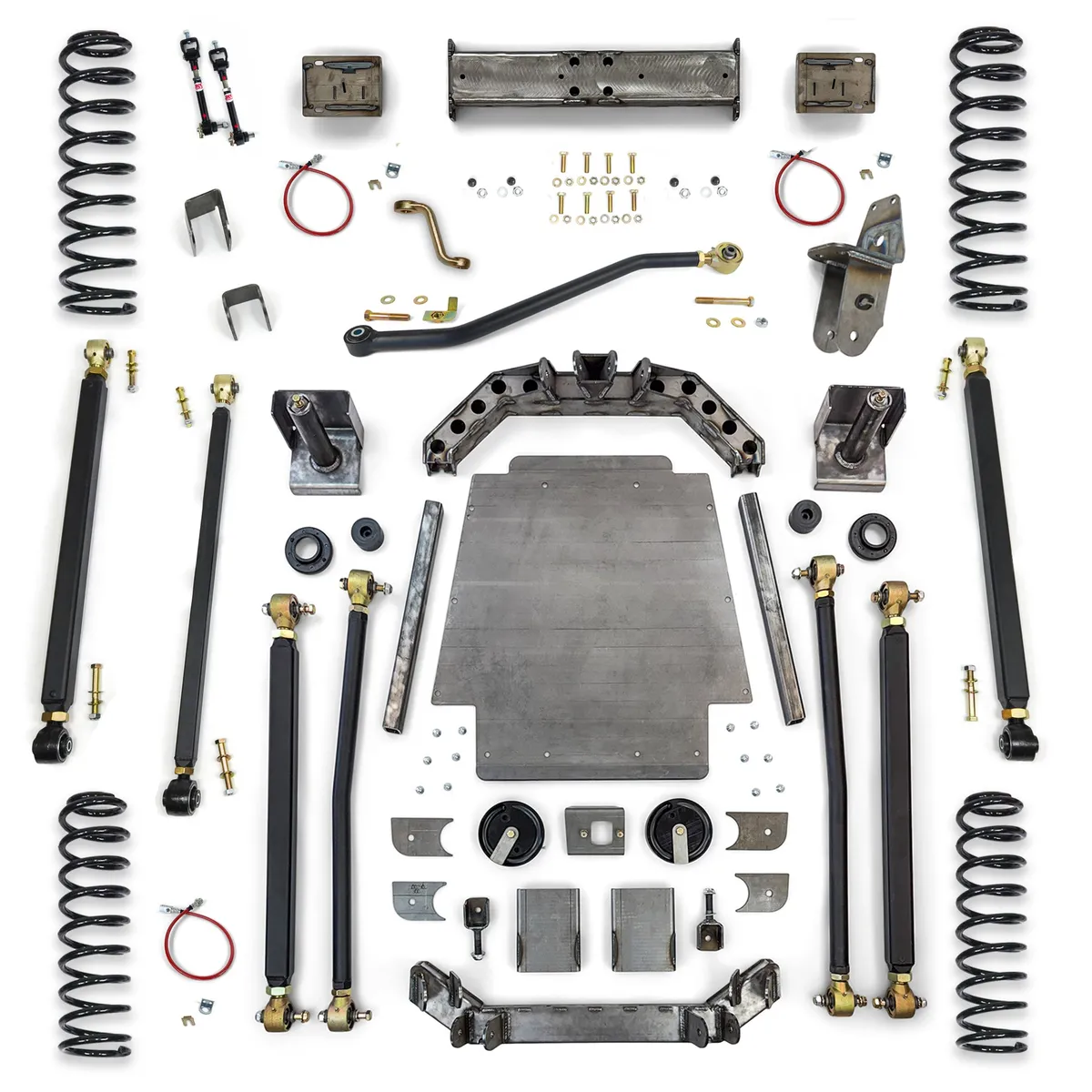

Key Components Included:

• Pro Series Arms: Forged Johnny Joint on one end, dual durometer self-centering GIIRO Joint on the other for maximum flex and adjustability
• Front 3-Piece Cross Member: Weld-in design with axle side bracket and standard 3 link axle mount for transmission access
• HD Trackbar & Double Shear Drop Bracket: Laser cut, CNC bent bracket housing a 2.5 inch forged Johnny Joint with a grade 8, 9/16-inch bolt for maximum flex
• Rear Coil Conversion Cross Member: Weld-in unit with 1/4 inch flat skid plate, 2 support rails, and a complete high clearance axle bracket kit
• New Upper Coil Buckets & Upper Shock Bracket: Designed for the converted rear coil setup
• Upper and Lower Adjustable Long Arms: Front and rear for precise pinion angle and ride height tuning

This is an advanced installation intended for experienced fabricators or high-end shops. The kit requires welding, cutting, and modification of the unibody frame rails. Exhaust rerouting is necessary, and depending on model year, e-brake cable relocation may be required. An optional 3 link truss is available separately for use with a stock Dana 30 front axle (not compatible with aftermarket axles).

At 8.0 inches of lift and a shipping weight of 67 lbs, this system delivers the geometry and durability needed for serious trail use once properly installed.
