Pro Plus 14.0 Inch Brake System Rear 78-88 GM G-Body Cars W/OE Saginaw 10 Bolt C-Clip (Bih) Drum Brake Housing Ends Black Baer Brakes

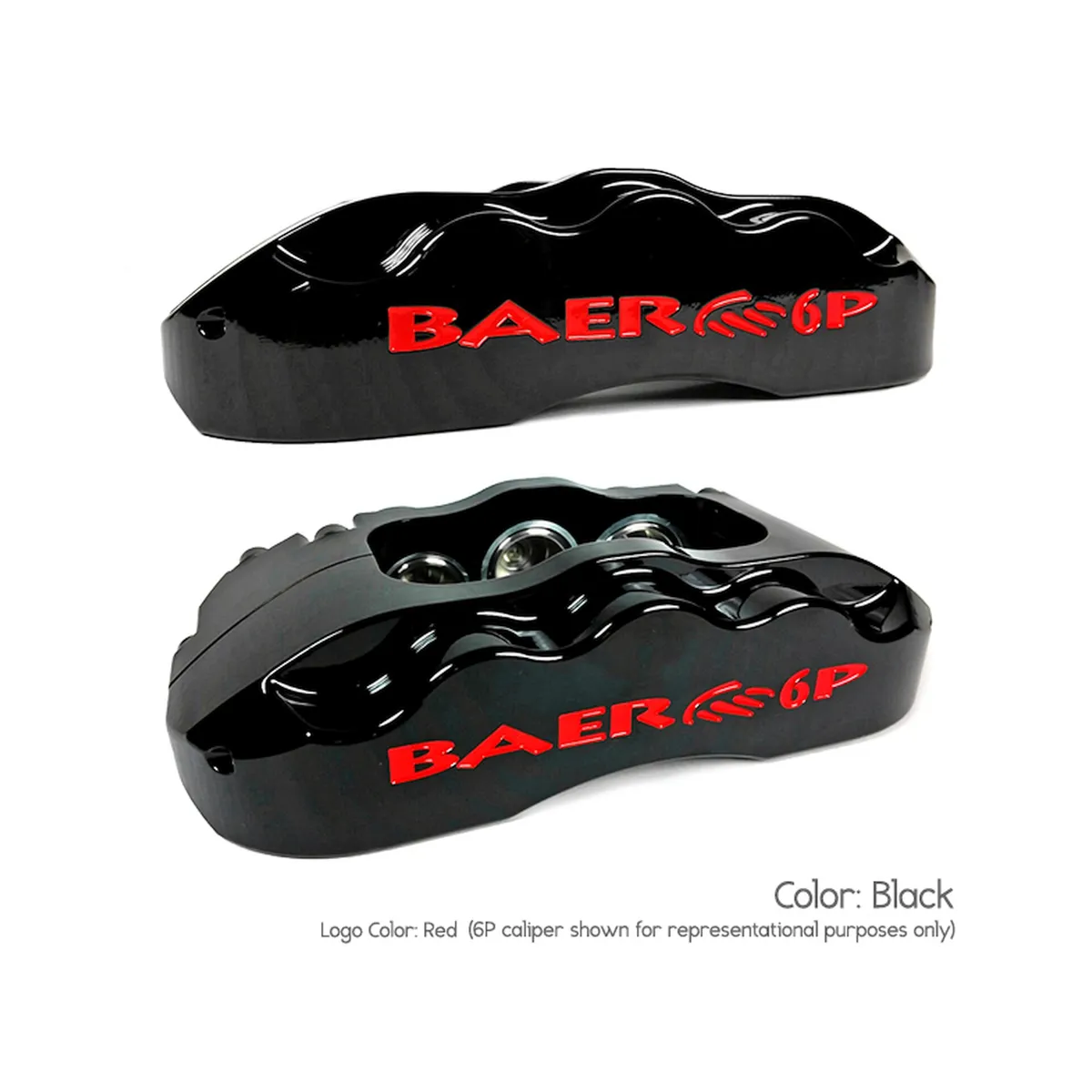

This system features the 6-piston, 6P caliper mounted to a 14 inch, 2 piece slot, drill, zinc plated rotor. T compliant dust and weather seals and uses the popular D0731 pad type. Rotors are pre-assembled with NAS high grade stainless hardware. Baer's unique backing plate not only acts as a caliper mount, but also houses a modern 1-piece park brake shoe assembly. Stainless braided hoses and hardware are also included. The 14 inch Pro Plus fits most 18 inch or larger wheels.

Features and Benefits:
2-Piece, 6-Piston, 6P Caliper Manufactured in Phoenix, Az CNC Machined from Us Sourced Forged or Billet Aluminum Powder Coated Finish Stainless Steel Pistons, Abutments and Noise Suppression Clips Staggered Pistons to Minimize Uneven Pad Wear Dual Seals, Dust/Weather & Pressure 2-Piece Slot, Drilled, Zinc-Plate Rotor w/Billet Aluminum Hat Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are interested in and compare it to the wheel of choice.

Details:

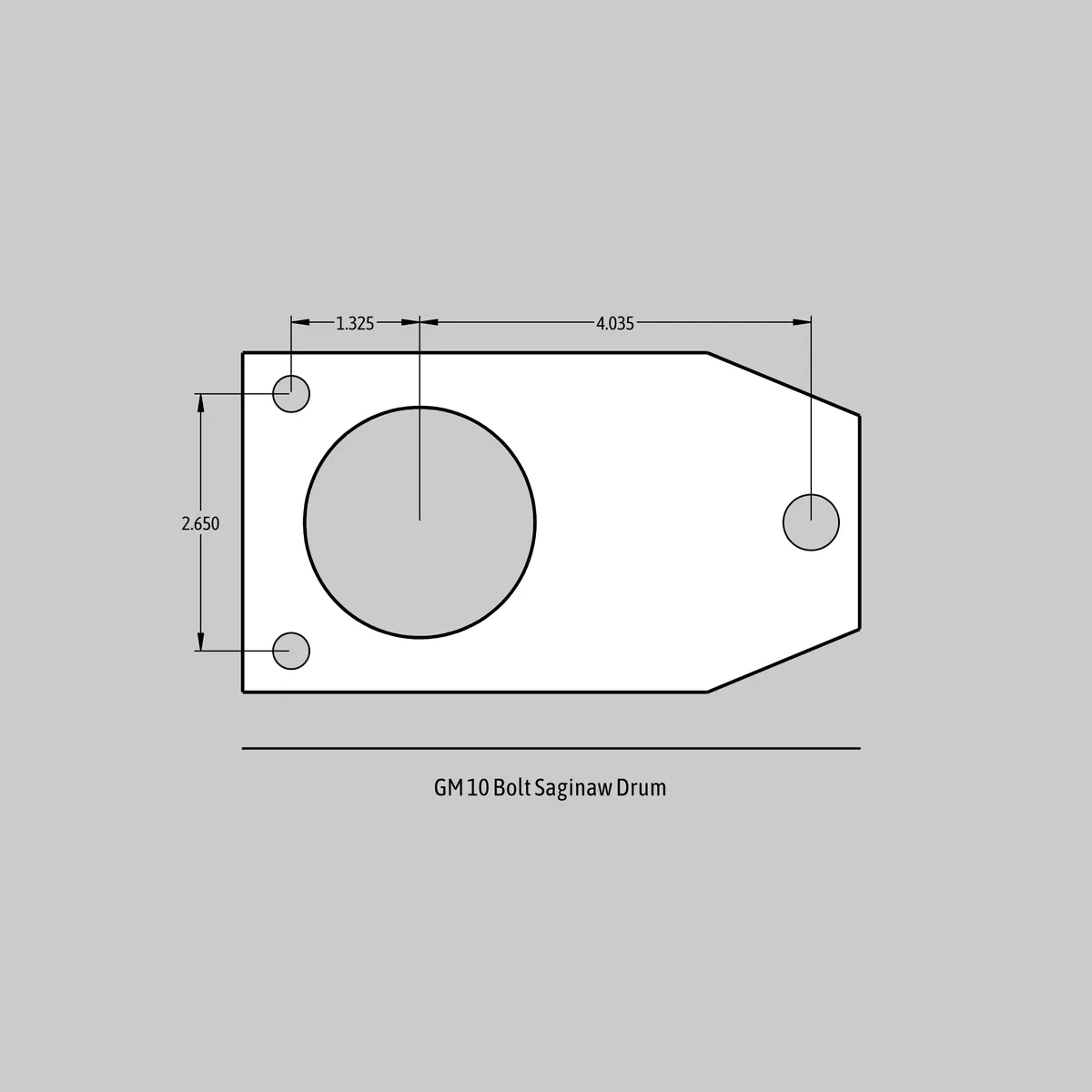

Fitment Notes: w/OE Saginaw 10 Bolt C-clip (Bih) Drum Brake Housing Ends Caliper: 6P Caliper Color: Black Disc Brake Rotor (Rear) Outside Diameter: 14.0 Inch Applications: GM G-Body 78-88 Axle: Rear Brake Hose DOT Approved: Yes Disc Brake Caliper (Rear) Piston Quantity: 6 Disc Brake Caliper (Rear) Type: Floating Disc Brake Pad FMSI Number: D0731 Disc Brake Rotor (Rear) Construction: Vented Emission Code: 6 Export Description: Brake Components Grade Type: Performance Hose Material: Steel Braided Includes Park Brake: Yes Includes Park Brake Cables: Yes Lug Count: 5 Lug Min Wheel Diameter: 18.0 Inch Rotor Thickness: 1.15 Rotor Type: 2-Piece Surface Type: Slotted, Drilled and Zinc Plated Template: Q085P Wheel Lug/Bolt Pattern: 5x4.75
