S4 Brake System Front 78-88 GM G-Body Vehicles 82-04 GM S10/S15 Pickups 2WD And 83-97 GM S10/S15 Blazer/Jimmy 2WD (Comes Assembled On Stock Height Spindles) Red Baer Brakes
Coming Soon
This product is not yet available for purchase. Stay tuned for updates!
This system features the 4-piston, S4 caliper mounted to a 11 inch, 2 piece slot, drill, zinc plated rotor. T compliant dust and weather seals and uses the popular DR1 or HB100 pad type. Rotors are pre-assembled with NAS high grade stainless hardware. Billet aluminum hubs come assembled with
Secure Checkout
SSL Encrypted
Easy Returns
30-day policy
Guaranteed Fitment
Or your money back
Pay Over Time
With Affirm

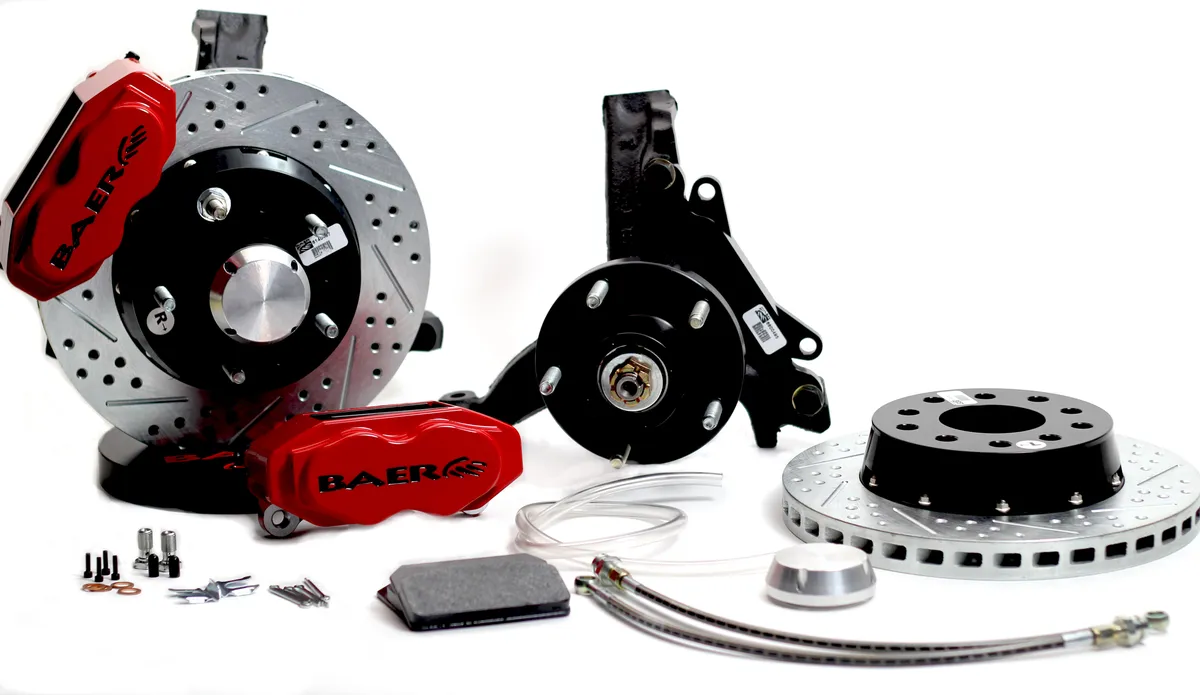

This system features the 4-piston, S4 caliper mounted to a 11 inch, 2 piece slot, drill, zinc plated rotor. T compliant dust and weather seals and uses the popular DR1 or HB100 pad type. Rotors are pre-assembled with NAS high grade stainless hardware. Billet aluminum hubs come assembled with premium bearings packed with Redline synthetic grease, billet dust caps and come pre-assembled on stock height spindles. All mounting brackets, stainless braided hoses and hardware are also included. The 11 inch SS4 Plus is designed just like Baer's larger systems, but in a smaller package for 15 inch wheels.
Features and Benefits:
2-Piece, 4-Piston, S4 Caliper Manufactured in Phoenix, Az CNC Machined from Us Sourced Forged or Billet Aluminum Powder Coated Finish Hard Anodized Aluminum Pistons, Stainless Steel Abutments and Noise Suppression Clips Dual Seals, Dust/Weather and Pressure 2-Piece Slot, Drilled, Zinc-Plate Rotor Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are interested in and compare it to the wheel of choice.
Details:
Fitment Notes: Comes Assembled on Stock Height Spindles Caliper: S4 Caliper Color: Red Disc Brake Rotor (Front) Outside Diameter: 11.0 Inch Drive: 2WD Applications: GM G-Body 78-88, GM S10/S15 Blazer/Jimmy 83-97, GM S10/S15 Pickup 82-04 Axle: Front Brake Hose DOT Approved: Yes Disc Brake Caliper (Front) Piston Quantity: 4 Disc Brake Caliper (Front) Type: Fixed Disc Brake Pad FMSI Number: DR1 Disc Brake Rotor (Front) Construction: Vented Emission Code: 6 Export Description: Brake Components Grade Type: Performance Hose Material: Steel Braided Includes Spindles: Yes, Stock Height Lug Count: 5 Lug Min Wheel Diameter: 15.0 Inch Rotor Thickness: 1.02 Rotor Type: 2-Piece Surface Type: Slotted, Drilled and Zinc Plated Template: S125A Wheel Lug/Bolt Pattern: 5x4.75 Wheel Stud Size: M12-1.50 x 51.5mm
