SS4 Plus Brake System Rear 64-77 GM A-Body Cars W/OE Small Pattern 10/12 Bolt Bearing On Axle (Boa) Housing Ends Also Fits Hybrid 10/12 Bolt Non-Flush Mount 3.150 Inch Bearing Black Baer Brakes
This system features the 4-piston, S4 caliper mounted to a 13 inch, 2 piece slot, drill, zinc-plated rotor. T compliant dust and weather seals and uses the popular DR1-C pad type. Rotors are pre-assembled with NAS high grade stainless hardware. Baer's unique backing plate not only acts as a caliper
Secure Checkout
SSL Encrypted
Easy Returns
30-day policy
Guaranteed Fitment
Or your money back
Pay Over Time
With Affirm

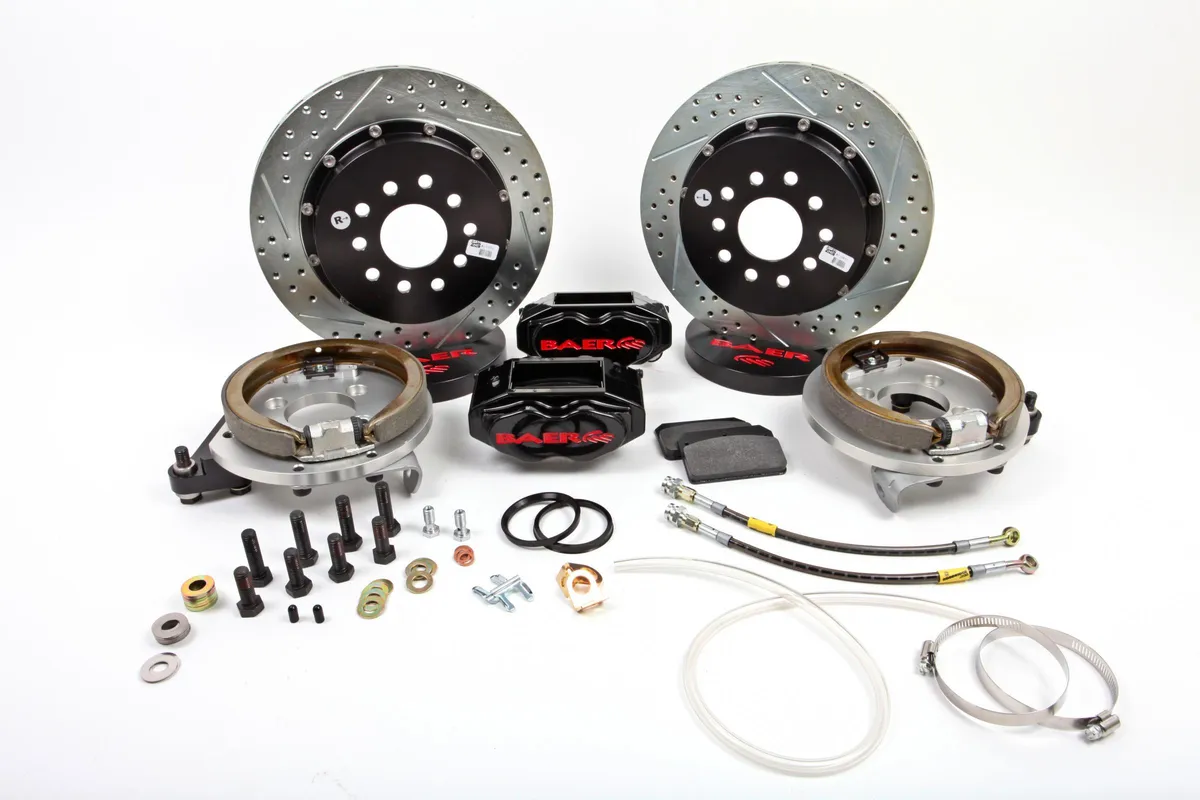

This system features the 4-piston, S4 caliper mounted to a 13 inch, 2 piece slot, drill, zinc-plated rotor. T compliant dust and weather seals and uses the popular DR1-C pad type. Rotors are pre-assembled with NAS high grade stainless hardware. Baer's unique backing plate not only acts as a caliper mount, but also houses a modern 1-piece park brake shoe assembly. Stainless braided hoses and hardware are also included. The 13 inch SS4 Plus fits most 17 inch or larger wheels.
Features and Benefits:
2-Piece, 4-Piston, S4 Caliper Manufactured in Phoenix, Az CNC Machined from Us Sourced Forged or Billet Aluminum Powder Coated Finish Hard Anodized Aluminum Pistons, Stainless Steel Abutments and Noise Suppression Clips Dual Seals, Dust/Weather & Pressure 2-Piece Slot, Drilled, Zinc-Plate Rotor w/Billet Aluminum Hat Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are interested in and compare it to the wheel of choice.
Details:

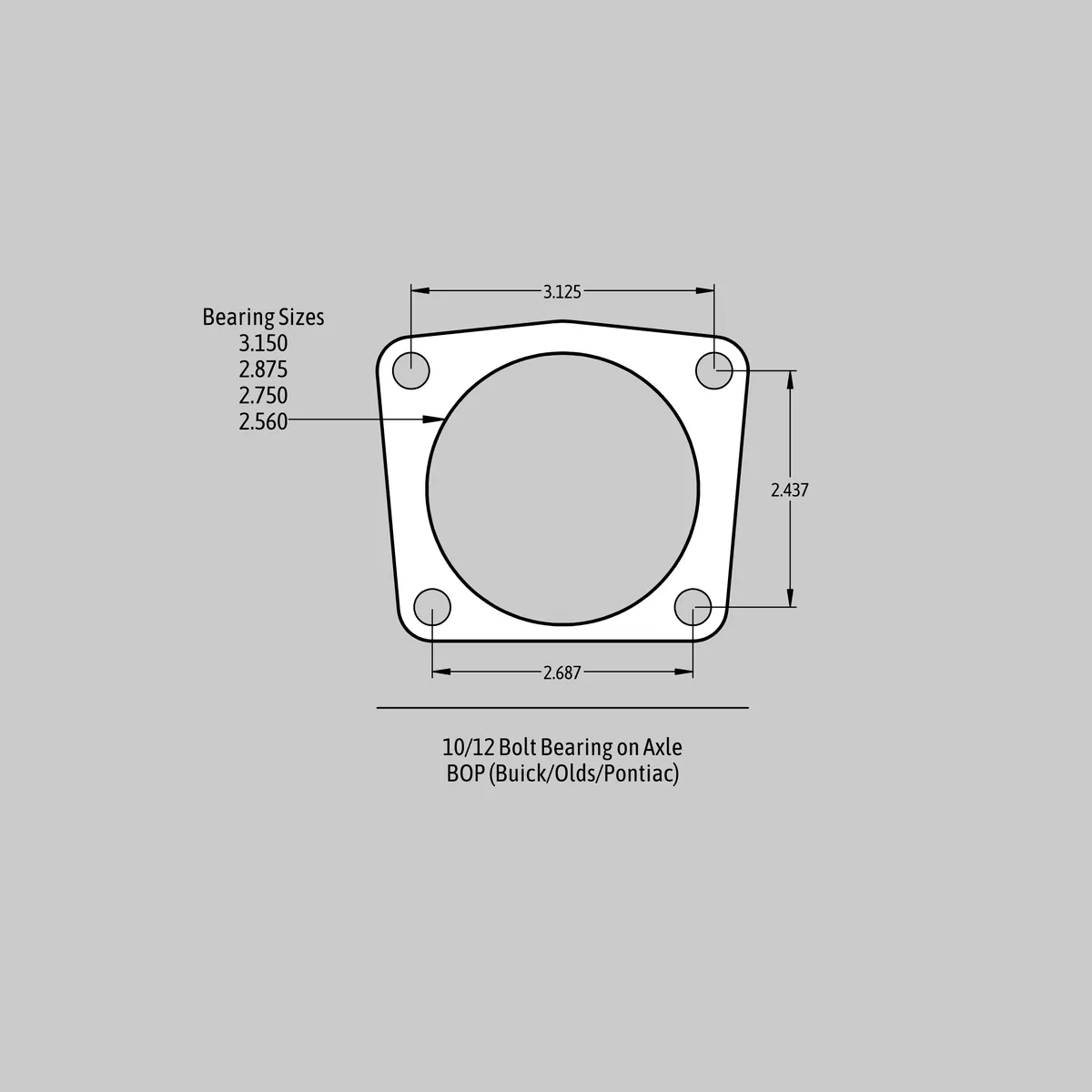

Fitment Notes: w/OE Small Pattern 10/12 Bolt Bearing on Axle (Boa) Housing Ends, w/Hybrid 10/12 Bolt Non-Flush Mount 3.150 Inch Bearing Caliper: S4 Caliper Color: Black Disc Brake Rotor (Rear) Outside Diameter: 13.0 Inch Applications: GM A-Body 64-77 Axle: Rear Brake Hose DOT Approved: Yes Disc Brake Caliper (Rear) Piston Quantity: 4 Disc Brake Caliper (Rear) Type: Fixed Disc Brake Pad FMSI Number: DR1-C Disc Brake Rotor (Rear) Construction: Vented Emission Code: 6 Export Description: Brake Components Grade Type: Performance Hose Material: Steel Braided Includes Park Brake: Yes Includes Park Brake Cables: Yes Lug Count: 5 Lug Min Wheel Diameter: 17.0 Inch Rotor Thickness: 0.81 Rotor Type: 2-Piece Surface Type: Slotted, Drilled and Zinc Plated Template: S135H Wheel Lug/Bolt Pattern: 5x4.75
