Steering & Caster Correction Geometry Upgrade Kit | Wrangler JK

JKS Steering & Caster Correction Geometry Upgrade Kit | Wrangler JK
Hover to zoom

Steering & Caster Correction Geometry Upgrade Kit | Wrangler JK

MPN: JSPEC2450UPC: 00814897011748
In Stock
Almost gone! Only 1 remaining
$529.95$551.15SAVE 4%
Starting at $45/mowithaffirm
Limited
Fits:Wrangler JK2007-2018Wrangler JKU2007-2018Wrangler JK SportWrangler JK SaharaWrangler JK RubiconWrangler JK2008-2018Wrangler JK JK2007-2007Wrangler JK 2.5Ton JK

Jeep Wrangler JK Rubicon 2007-2018 Jeep Wrangler JK Unlimited Rubicon 2007-2018 JKS Steering and Caster Correction Geometry Upgrade Kit.

1

Secure Checkout

SSL Encrypted

Easy Returns

30-day policy

Guaranteed Fitment

Or your money back

Pay Over Time

With Affirm

Usually ships in 1-3 business days

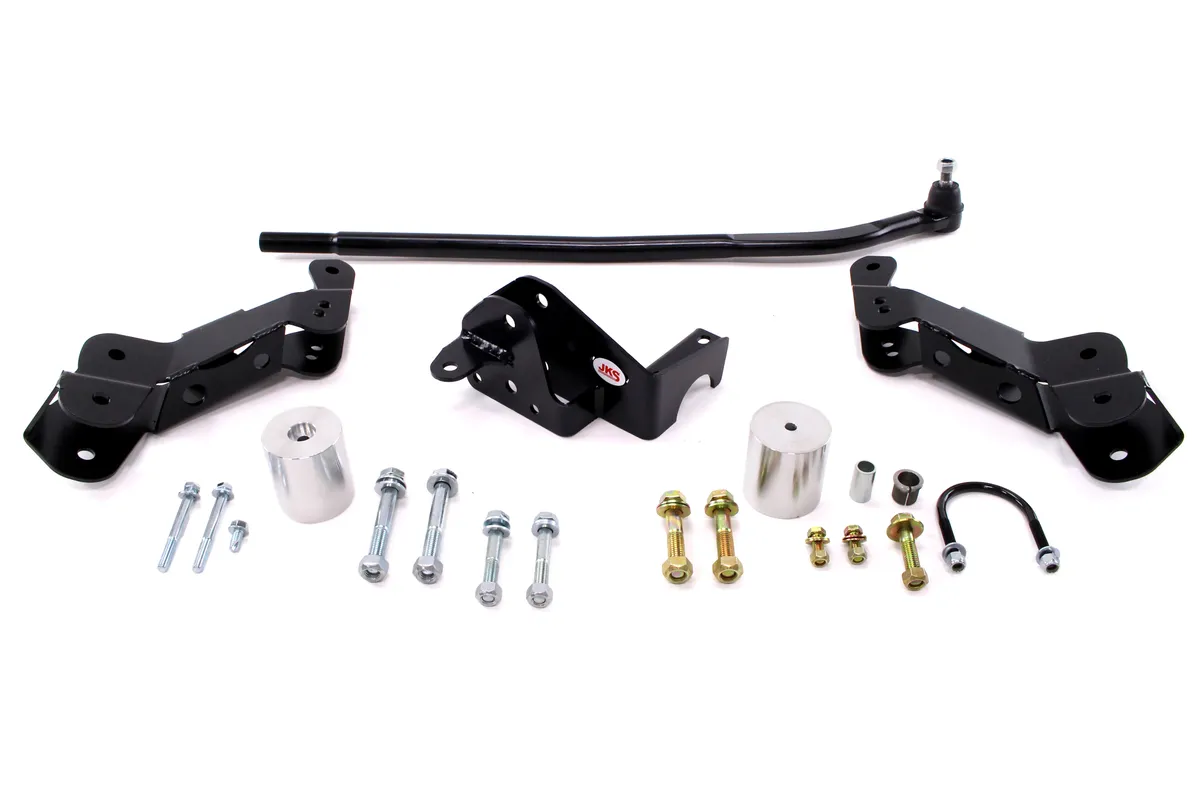

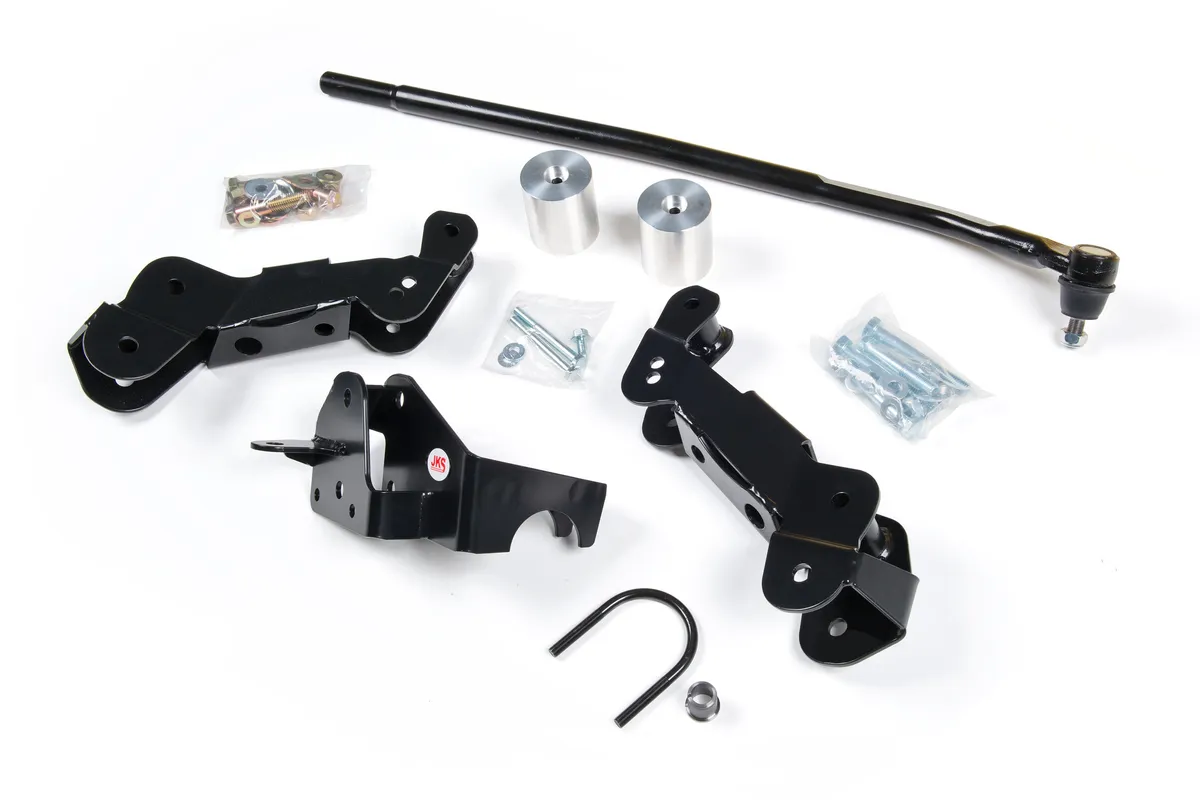

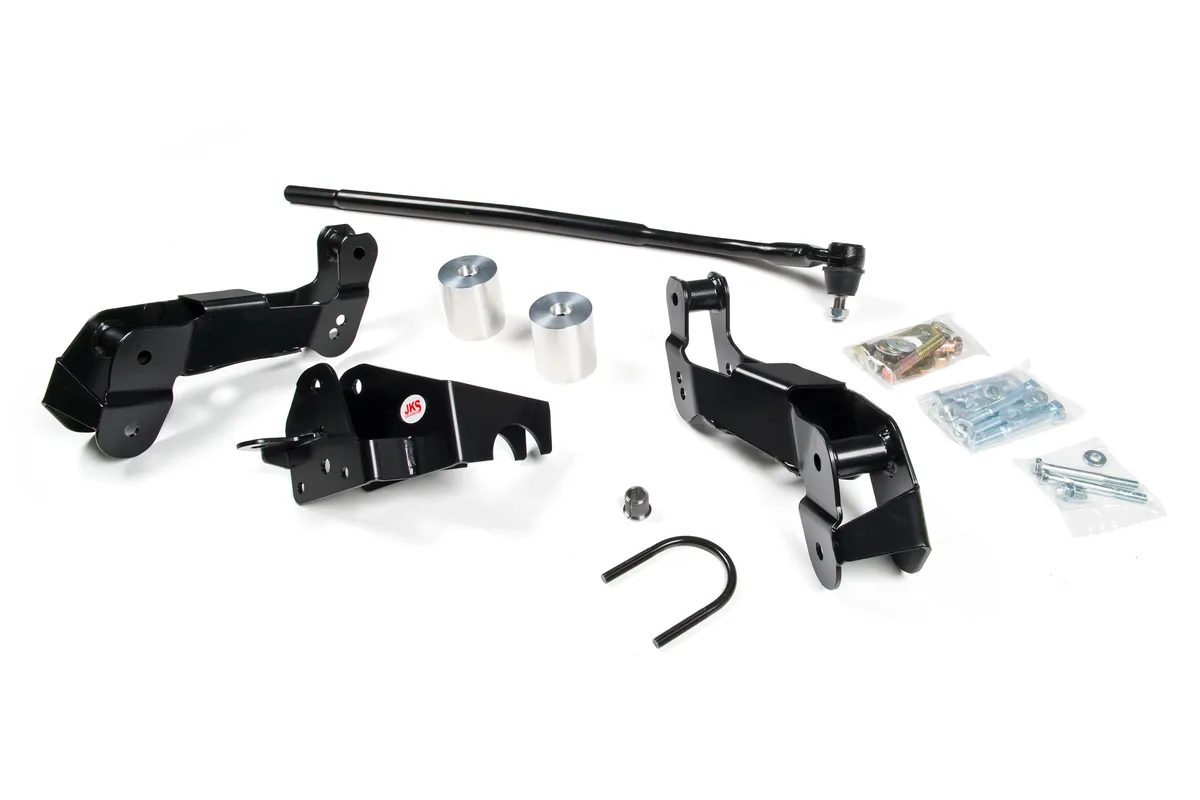

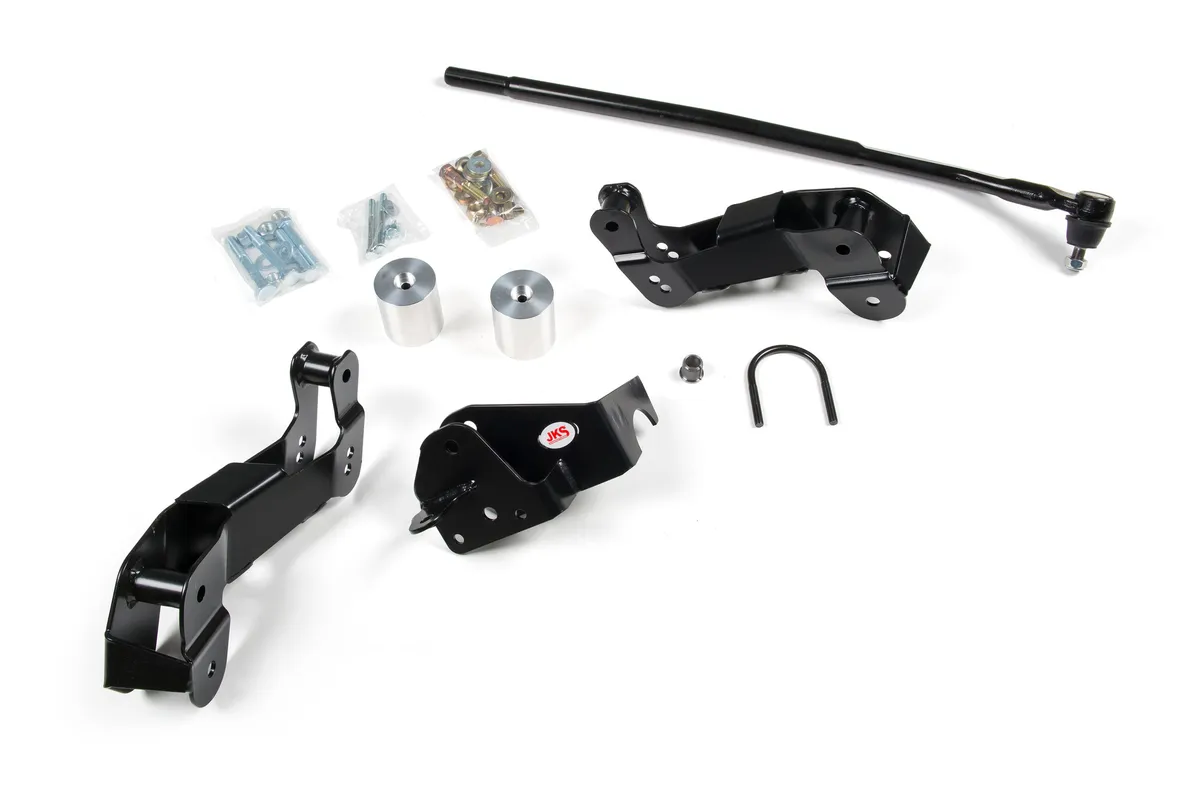

Upgrade the handling of your Jeep Wrangler JK with a JKS Steering and Caster Correction Upgrade Kit. Proper geometry is important for a safe, enjoyable driving experience. You get a Drag Link Flip System plus our popular JKS6200 control arm relocation bracket system all in one kit. Works with JK lift systems of 2.5-5" of lift. The drag link flip system is comprised of a new drag link, a Track Bar bracket and a tapered steering arm insert. The design flattens out steering angles with lift heights of 2" and above. Experience better steering feel without bump steer. In order to accommodate these the flip kit, 3" tall front aluminum bump stop extensions are included to provide the proper clearance at full bump. The combination of these brackets with the high steering components create an amazing handling package. This upgrade kit can be used with several different lift systems setups. There are a few items that are required for proper fit and function of this kit in combination with other systems: You must use a factory pitman arm; the design cannot be combined with other track bar relocation systems, (although most popular adjustable track bars are ok) and you must maintain a minimum of 3" worth of bump stop extension over factory. Works with either the 2.5 or 3.5" JSpec systems. The 2" JSpec front bump stops will need to be replaced with the 3" provided in the Upgrade Kit.

Overview

Jeep Wrangler JK Rubicon 2007-2018 Jeep Wrangler JK Unlimited Rubicon 2007-2018
JKS Steering and Caster Correction Geometry Upgrade Kit.

Earn 529 Yittzy Rewards points with this purchase โ€” 1 point per $1 spent. Join free

Installation Overview

Difficulty
๐Ÿ”ง๐Ÿ”ง๐Ÿ”ง๐Ÿ”งโšช
Advanced
Est. Time
4-12 hrs
Skill Level
Advanced
Pro Install
Recommended
Common Tools: Floor jack, Jack stands, Socket set, Torque wrench, Spring compressor
